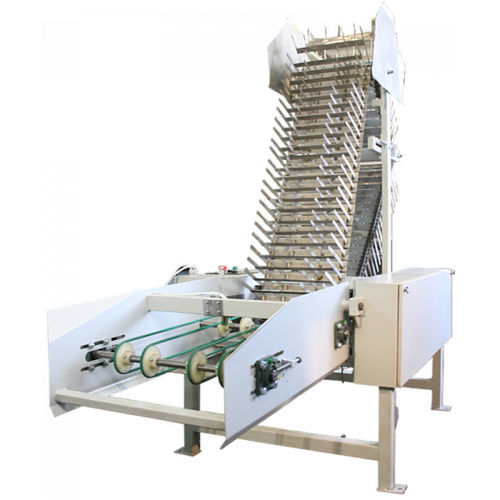

Sheet conveyor WTC-2

chaintransportcooling

Our confectionery equipment production is located in Varna, Republic of Bulgaria. All our equipment has received declarations of conformity of our equipment to the requirements of the European Union. Wafer sheet transport conveyor WTC-2 – is intended for cooling wafer products in the process of moving from the oven to the area for further processing. Principle of operation: Wafer sheet is fed onto a transport conveyor and transferred to the holding device of the chain conveyor, where the wafer products are naturally cooled and stabilized. Three modes of movement of the chain conveyor: 0 – always on, used for service functions (checking, cleaning, etc.); 1 – movement along the sensor, 3 seconds after passing the sheet, the conveyor is shifted by 1 position; 2 – movement by timer, the conveyor moves one position at a given time. Distinctive features: – parts of the equipment in contact with the product are made of food-grade materials (stainless steel, polyurethane); – initially, the universal control was built on the basis of a programmable logic controller, which allows you to adjust the mode optimally to the production conditions; – shipping dimensions: 1600x950x1950 mm Products transported at the same time, pcs. - 34 Installed capacity - 0.8 Power consumption, kW - less than 0.4 Rated voltage, V - 380 Overall dimensions (LxWxH), mm - 2100x950x1950 Weight, kg - 200 Warranty, months - 12 Contents of delivery - Quantity, pcs. WTC-2 - 1 technical certificate - 1
