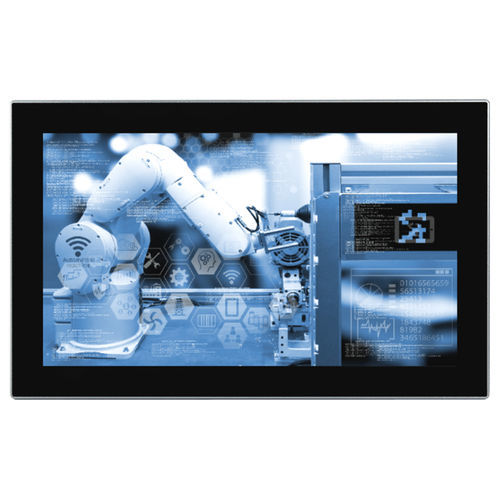

LCD monitor M series

capacitive touch screennetwork15.6"

Brightness cd/m2 - 320 Angle of view H/V - 160°/160° Backlight lifetime hrs. - 40.000 Network - – USB - – Seriell/Parallel - – Audio - – Extension interfaces - – Additional features - Menu buttons, back Operating voltage - 24V DC Power consumption - approx. max. 38W (23.8″) Storage temperature - -20° to 70°C Storage humidity - 5% to 90% at 40°C, non-condensing Resistenz Vibration - 1.5 Grms @5~500Hz, 1hr/axis, IEC-60068-2-64 Resistenz Schock - 10G/peak (11ms sec) Certificate - CE Dimension mm (W x H x D) - 10.1″: 275.0 x 193.5 x 55.0; Cut-out: 263.0 x 182.0 12.1″: 304.0 x 242.5 x 55.0; Cut-out: 290.0 x 229.0 12.1″: 314.0 x 216.0 x 55.0; Cut-out: 300.0 x 203.0 13.3″: 344.5 x 216.0 x 55.0; Cut-out: 331.0 x 203.0 15″: 361.0 x 285.0 x 55.0; Cut-out: 347.0 x 271.0 15.6″: 400.0 x 250.0 x 55.0; Cut-out: 386.0 x 236.0 17″: 394.6 x 327.0 x 55.0; Cut-out: 381.0 x 313.0 17.3″: 441.0 x 274.0 x 55.0; Cut-out: 427.0 x 260.0 18.5″: 466.0 x 286.6 x 55.0; Cut-out: 452.0 x 273.0 19″: 438.0 x 362.6 x 55.0; Cut-out: 420.0 x 345.0 21.5″: 538.0 x 329.8 x 55.0; Cut-out: 520.0 x 312.0 23.8″: 585.0 x 354.5 x 58.0; Cut-out: 568.0 x 337.0 Weight kg - 10.1″: 1.9 12.1″: 2.1 13.3″: 2.7 15″: 3.7 15.6″: 3.9 17″: 4.1 17.3″: 4.2 18.5″: 4.4 19″: 5.4 21.5″: 5.8 23.8″: 6.8 Accessories - 2-pin terminal connector, 1.5m, mounting clips
