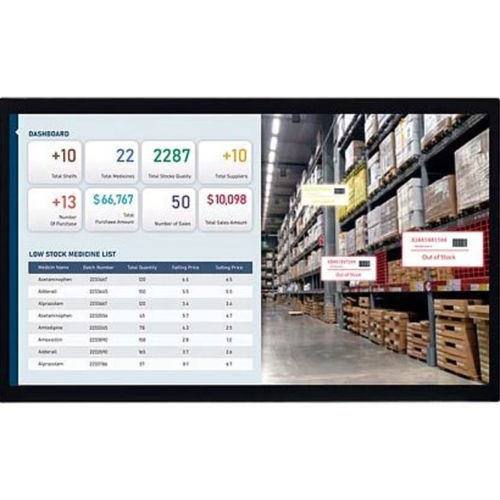

LCD panel PC XPPC-24-200A series

PCAP capacitive touch screenLED backlight23.8"

23.8" Fanless Panel PC, 1920x1080, 350cd/m2, Optical Bonding, PCAP Touch, Intel 11th Gen Core i5/i3 CPU, Up to 32GB DDR4 RAM, HDMI, DP, 2xGbE LAN, 1xRS232/422/485, 4xUSB 3.0, 1xM.2 2280 M-Key, 1xM.2 2230 E-Key, Audio, 19VDC-in Jack with PSU, 0..50C Aspect Ratio 16:9 Brightness 350 Cd/m2 Contrast Ratio 1000~1 Input Interface HDMI Socket FCBGA 1449 Chipset Intel SoC Memory ECC No Assembly Removable Graphic Controller Integrated in CPU, Intel Iris Xe Graphics, Intel UHD Graphics Ethernet Total Ethernet 2 10/100/1000 Mbit/s 2 Interfaces COM Total 1 USB Total 4 USB v3.x 4 Drive interfaces M.2 1 Extension Slots Total 2 M.2 2 M.2 Form Factor 2280 M, 2230 E LED / Controls LED Power LED Controls On/Off Connectors Connectors DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port System Power Input Input Voltage DC 12..12 V Power Supply Type of Power Supply External power adapter AC/DC Output Power 96 W AC input voltage 100-220 V Dimensions and weight Width 557 mm Height 336.7 mm Depth 55 mm Operating Conditions Operating Temperature 0..50 °C Humidity 10-90% Vibration IEC 68 2-64 - 2G @ sine, 5~500Hz, 1hr/axis - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock IEC 68 2-27 - 20g peak acceleration (11 msec. duration) Standards and Certifications Certifications CE, FCC Class A Dimensions Net Weight 5.8 kg Gross Weight 7.85 kg
