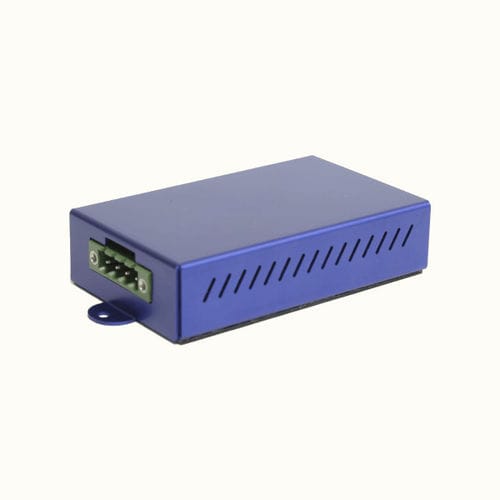

Timer on delay PVB-800off delaydesktopbox
Add to favorites
Compare this product
Characteristics
- Function
- on delay, off delay
- Mounting
- box, desktop
- Product applications
- industrial, desktop, box, for vehicles, terminal block
- Voltage
Min.: 12 V
Max.: 30 V
Description
Vehicle Power Delay Timer Box, 12-30VDC-in/out, Power on delay: 10/15/30/60 sec, Power off delay: 1/5/10/30 min, 3A Max load, MIL-STD-810G, -20..85C Operating Temp.
Power Supply
Type of Power Supply
Industrial, External power adapter AC/DC
Type of input voltage
DC
Output Voltage DC
12 V
Rated current
3 A
Input Voltage DC
12..30 V
Construction
Mounting Configuration
Desktop
Connectors
Connectors
DC input (terminal block)
Dimensions and weight
Width
55.4 mm
Height
21.6 mm
Depth
88.6 mm
Operating Conditions
Operating Temperature
-20..85 °C
Humidity
5-95%
Vibration
MIL-STD-810G
Shock
MIL-STD-810G
Temperature (Storage)
-40~+85
Dimensions
Net Weight
0.13 kg
Gross Weight
0.2 kg
