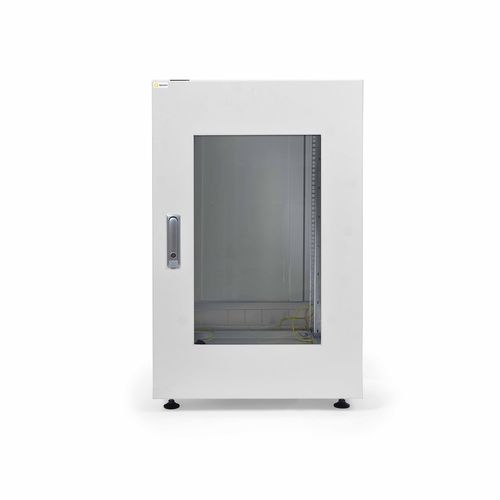

Floor-standing server cabinet С-24U-06-10-DS-PG-1
IP30

floor-standing server cabinet
floor-standing server cabinet
floor-standing server cabinet
floor-standing server cabinet
Add to favorites
Compare this product


Characteristics

Mounting
floor-standing
Protection class
IP30
Height

1,066 mm
(42 in)

Length

600 mm
(23.6 in)

Width

600 mm
(23.6 in)

Description

SERVER CABINET IPCOM С-24U-06-10-ДС-ПГ - a floor cabinet of series С is intended for installation of 19 '' active telecommunication equipment with the subsequent maintenance of office and industrial facilities. The degree of protection of the cabinet - IP30. The maximum load is 1000 kg. Telecom cabinet allows you to solve almost any problem on the placement of equipment. More attention was paid to fixing and strengthening the mounting rack. With the help of the rack equipment can be adjusted in height and depth. Access to installation of equipment is carried out from 4 sides.Convenient, removable side panels hinged with a lock, simplify access to active equipment inside the cabinet. For cable entries on the back of the cabinet a removable panel is provided with a cap on it. Also cable entries are located in the lid and at the bottom of the cabinet and are also protected with plugs. Ventilation of the cabinet is provided by installing the fan units in the roof or bottom of the cabinet and is fixed with bolts. To remove static discharges inside the cabinet, the construction provides for the presence of grounding terminals on the housing and doors. The cabinet is supplied unassembled and easy to assemble.
