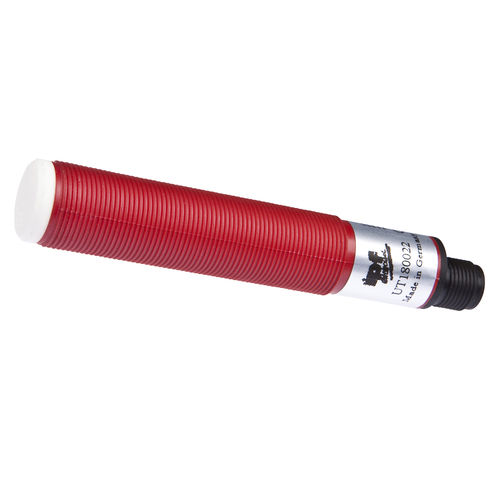

Reflex type ultrasonic sensor UT180022

with background suppression

sensor ultrasonic, diffuse-reflection sensor, M18x1 104long, Sn: 200-2000, 15-30V DC, 4-20mA, Connector M12 5pin, IP67, Plastic, Teach-In, With LED display, ultrasonic cone Axial Ultrasonic sensors - Distance measurement Ultrasonic sensors are non-contact and wear-free position switches which can also be used under rough environmental conditions. A key advantage of these devices lies in the fact that the material and the surface characteristics of the objects to be detected can be almost anything. Solids, liquids, grainy materials and powdery materials can be identified without the shape or the color of the object having any influence to the measured result. In addition, the ability to detect transparent materials such as films and fluids is of particular importance. The shape and color of the objects do not influence the result of the detection. The capability to detect transparent films or liquids is also of special importance. Ultrasonic sensors are used for distance measurement (e.g. detection of diameters, loop control), for fill level detection (e.g. silo detection), for positioning and presence detection (e.g. glass pane positioning, film tear check, glass bottle detection) Electrical features Betriebsspannung (DC) 15 - 30V Response time 200ms No-load current 30mA Relative repeat accuracy 0,4% Type of analog output 4 mA ... 20 mA Setting procedure Teach-In Sound outlet Axial Reverse polarity protection yes Messbereich 200 - 2,000mm Resolution 1mm Number of pins 5 Carrier frequency 180kHz Type of electrical connection Connector M12 Short-circuit protection yes
