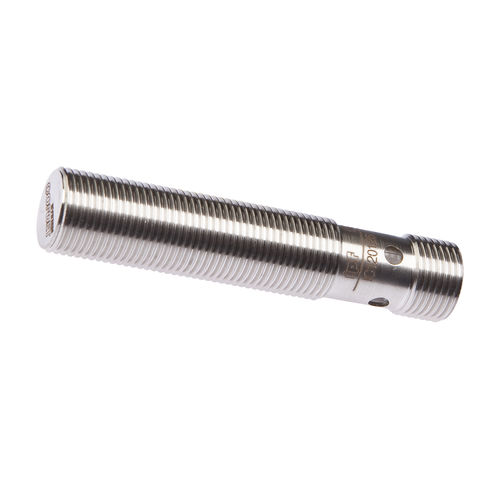

Inductive proximity sensor IC120126
mechanicalcylindricalM12

inductive proximity sensor
inductive proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
inductive, mechanical
Shape
cylindrical
Diameter
M12
Output signal
PNP, digital
Supply voltage
12 Vdc, 15VDC, 24 Vdc
Mounting
flush
Material
stainless steel, brass
Protection level
impact-resistant, vibration-resistant, IP67, IP69K
Applications
for conveyors, for the chemical industry, for hygienic applications
Other characteristics
with LED light, high-pressure, 3-wire
Length

60 mm
(2 in)

Measuring range

6 mm
(0.24 in)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

sensor inductive, all-steel,PNP NO, IO-Link, Connector M12, IP69K, Stainless steel 1.4305, factor 1 including 2x Nut, 2x Toothed washer Inductive sensors - Full-metal housing Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects. Electrical features Norm measuring plate 18x18x1 Cascodable rvo Type of swltchlng output PNP Type of swltchlng functlon Normal lyooen contact Swltchlng frequency ôOOWz Max. Une length 300m No-load current 10mA Correction factor (stalnless Steel V2A: 1mm) 0 - .4 Correction factor (brass) 1.3 Correction factor (aluminum) 1 Readlness delay 10ms Reverse polarlty protection yes Mechanical features Active area materlal of sensor Starnless Steel 1.4305 Mechanical mountlng condition for sensor Plush Pressure-proof yes Max. tlghtenlng torque 20Nm Materlal thlckness 0.4mm Thread pltch lmm Thread length 41mm Relative repeat occuracy 5% Short-circuit protection yes IO-Unk compatible yes Type of electrical connection Connector M12 Voltage drop 2V Resldual rlpple 20%
