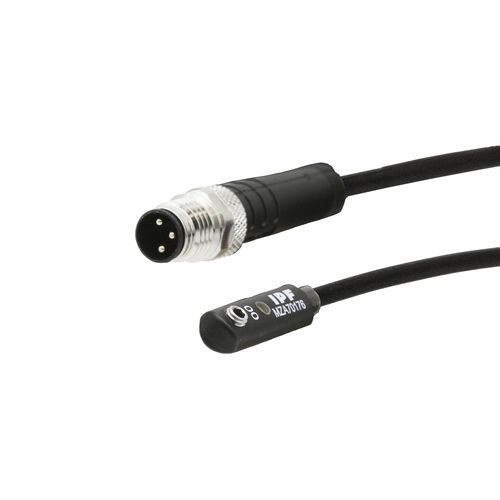

Magnetic proximity sensor MZA70176flatsheetslot type
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic
- Shape
- flat, sheet, slot type
- Output signal
- with switching function, digital
- Protection level
- IP67
- Applications
- for pneumatic cylinders
- Other characteristics
- with LED light, 3-wire
Description
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, magnetic cylinder sensors are used.
sensor magnetic, cylinder, 6.2mm T-groove, 4,3x19x6,2mm, 10-30V DC, 1x PNP NO, Cable connector M8 3pin 0.3m PUR (Polyurethane), IP67, Zinc die-cast, LED, 2.8mT, mounting From the top, Sensor surface position Center of the device
Catalogs
MZA70176
3 Pages
