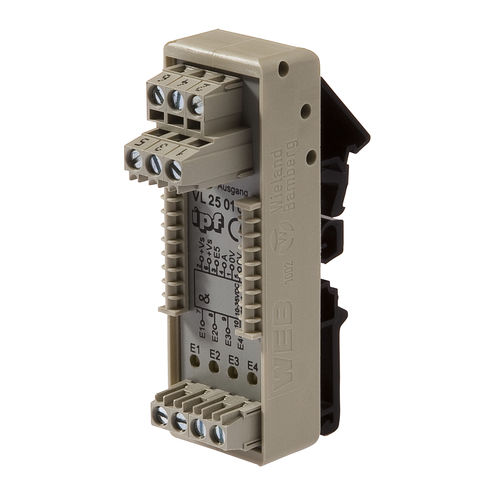

Integrated logic module VL250100

DIN railinputsoutputs

Logic module, 49x80x26mm, AND, 4fold, 10-35V DC, sensor side Clamp, control side Clamp, IP40, Plastic Connection technology - Logic modules Connecting digital signals directly at the machine can contribute to significant cost and effort minimization. A classic application is the linking of different signals directly in the field. Thus, it is possible to avoid long line paths of many individual devices, which significantly reduces the wiring effort and the need for control inputs. All input signals on the logic modules are visualized by integrated LED and are electrically decoupled from each other. In this way, influences from one device to the other are reliably prevented. The outputs of the modules are overload-proof and the upcoming signal is also indicated by an LED. In addition to logical input signal connections such as AND and OR, versions with signal change control are also available. The ipf logic modules are available for DIN rail mounting or as field modules. Therefor and because of the robust housing, which is characterized by a high degree of protection against the penetration of dust and water, our devices can be used in all areas of machines, equipment and tools. Electrical features Betriebsspannung (DC) 10 - 35V Number of logic units 1 No-load current 5mA Voltage drop 2,1V Type of electrical connection, sensor side CÎamps Cascadable yes Mechanical features Ambient temperature -25 - 60°C Height 49mm Mounting method DIN rail (top hat rail) 35 mm Housing material Plastic Number of inputs per logic unit 4 Rated switching current 300mA Switching frequency 5.000Hz Anzahl der Steckplâtze 4
