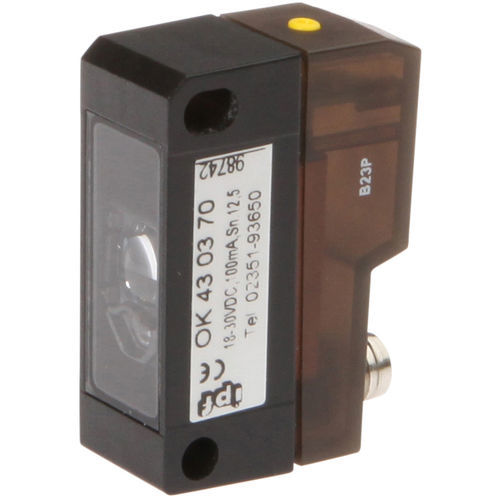

White light contrast sensor OK430370

fiber opticIP67

sensor optical, contrast, 43x31x15mm, White light, Sn: 10.5-14.5, 18-30V DC, PNP/NPN Push-pull, Connector M8 4pin, IP67, PMMA, 10kHz, Teach-In Description Optical sensors - Contrast sensor Contrast scanners are capable to distinguish the the visual differences (e.g. reflectivity, brightness differences) between adjacent areas. In general, the devices project a light spot on an object's surface and analyze the reflected light. Fiber optic amplifier versions can be used in addition to the incident light mode also in the transmitted light mode. Contrast scanners are versatile. They can be used, among other things, for position control of printing or color marks, distinction of brightness variations or in the intensity control of luminous objects (like LEDs, displays etc.). Technical data Electrical features Betriebsspannung (DC) 18 - 30V Rated switching current 100mA Number of pins 4 Voltage drop 2V Type of electrical connection Connector MB Settlng procédure Tec-ch-ln Ught color, selectable rvo Programmable via software rvo Mechanical features Amblent temperature -25 - 65°C Sensor helght 43mm Max. tlghtenlng torque O.SNm Degree of protection (IP) IP67 Optical features Ught focus distance 125 Nominal senslng range 125mm Détection of prlnt marks no Ught source WViite light Turbldlty Inspection no Other features Messberelch 10.5 - 14.5mm| No-lood current 20mA Switching frequency lO.OOOHx Type of switching functlon Push-pull Type of switching output PNP/NPN Short-circuit protection no Reverse polarity protection no Sensor width 14.3mm Sensor length 31mm Design Cuboid
