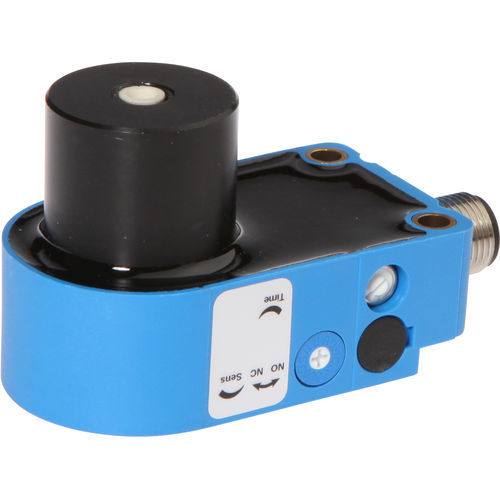

Inductive proximity sensor IY040322
mechanicalringM12

inductive proximity sensor
inductive proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
inductive, mechanical
Shape
ring
Diameter
M12
Output signal
PNP
Supply voltage
15VDC, 240 VDC, 24 Vdc, 32VDC
Material
polyamide
Protection level
vibration-resistant, IP67
Length

71 mm
(3 in)

Width

35 mm
(1 in)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Description

sensor inductive, 40x71x35mm, ring 4, 10-35V DC, PNP NC/NO, Connector M12 3pin, IP67, Polyamide, Static Inductive sensors - Ring sensors Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects. Electrical features Puise stretching 10 - 150ms Cascadable no Type of switching output PNP Type of switching function Normally closed contact/normally open contact Number of pins 3 Min. object size (copper wire) 0,2mm No-load current 11mA Response time 0,5ms Switching behavior of the output Statlc Mechanical features Ambient temperature -25 - 70°C Sensor height 40mm Ring diameter 4mm Pressure-proof no Ceramic ring bushing yes Degree of protection (IP) IP67 Housing material Polyamide Voltage drop 2V Setting procédure Manual adjustment Type of electrical connection Connector M12 Decay time 10ms Switching distance 4mm Max. parts speed 35m/s Rated switching current 200mA
