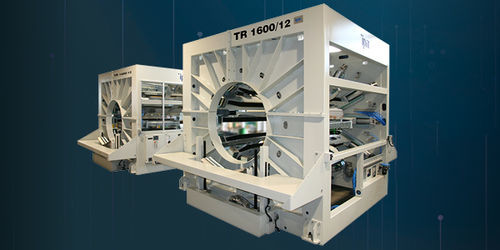

Pipe extrusion line caterpillar haul-off TR series

Overview
Independent A.C. motor drive for each caterpillar chain with vectorial control, eliminating wear-prone transmission elements for minimal maintenance and high reliability.

Features

• All caterpillar chains are of the pulling type and use shaped rubber blocks to maximise contact surface with the pipe
• Tiltable upper caterpillar chains for alignment and handling
• Automatic or manual chain tensioning options
• Increased contact length between chains and pipe to achieve maximum haul-off force with minimal chain pressure
• Capable of synchronisation with any type of extruder

Technical information (table)
Type — Ø mm
TR 125/3 — 16 - 125
TR 200/3 — 20 - 200
TR 200/4 — 25 - 200
TR 250/3 — 25 - 250
TR 250/4 — 25 - 250
TR 400/4 — 75 - 400
TR 400/6 — 63 - 400
TR 500/6 — 63 - 500
TR 630/6 — 90 - 630
TR 630/8 — 125 - 630
TR 800/8 — 200 - 800
TR 1000/8 — 400 - 1000
TR 1200/10 — 250 - 1200
TR 1600/12 — 400 - 1600
TR 2000/14 — 800 - 2000

Technical characteristics / specifications

• Drive: independent A.C. motor per caterpillar chain with vectorial control (reduced maintenance; no wear-prone transmissions)
• Caterpillar chains: pulling type with profiled rubber blocks for maximum contact area
• Upper chains: tiltable for alignment and improved handling
• Chain tensioning: automatic or manual stretching
• Contact length: extended contact length to maximise haul-off force at low chain pressure
• Synchronization: compatible with any extruder type
• Available models cover diameters from 16 mm to 2000 mm (see table above)
