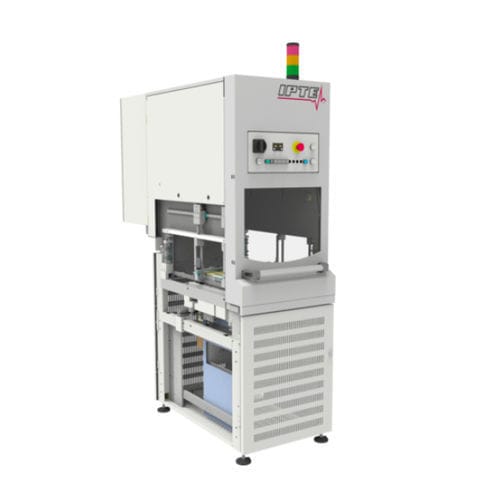

Test materials handling system MFT 19 ELOWERK

automaticin-linemodular

The MFT 19 Elowerk Z1 Test handler is a 19" rack-type handler for a performing in-circuit tests on PCBs that are routed through the handler on transport belts. Its multi-functionality lies in the fact that the modular MFT provides single lane, dual lane, single segment, dual segment, single well and dual well configuration, thus allowing up to four times increase in throughput in comparison with a standard single lane tester. The Elowerk Z1 tester is integrated in the test system and allows full benefit of the Tester’s functionality (High pin count, parallel testing). • Single stage, dual stage and double sided contacting • Smallest footprint for parallel testing • Easy Fixture Excha Options • Drive force 10 kN • Multiple stop positions • Interface for top or bottom tooling • Stopper on transport rail or fixture
