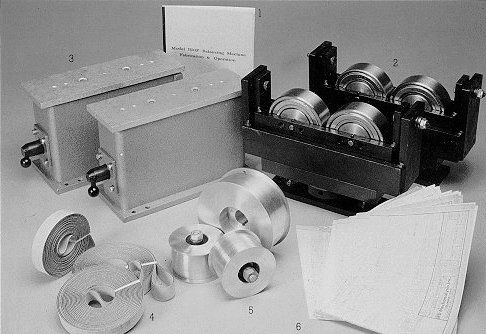

B Series - B50F 2300 kg (5000 lb) Capacity User Fabricated Balancing Machine HORIZONTAL AXIS, GENERAL PURPOSE, SOFT BEARING, BALANCING MACHINE DESCRIPTION The B50F is a dynamic, horizontal axis, soft-bearing Balancing Machine that is assembled with precision balancing parts supplied by IRD® and field fabrication by the user. IRD® supplies two modular suspension work supports, two sets of roller work supports, drive motor pulley, idler pulleys, belts, end thrusts and fabrication drawings. The customer supplies a machine bed, pedestals for mounting the modular suspension work supports, the drive motor, variable speed motor controller and a frame for the belt drive. Optional instrument packages, V-Block rotor work supports, drive power systems and negative load hold downs are available. GENERAL SPECIFICATIONS • Weight Capacity: 2300 kg (5000 lb) • Max. Rotor Dia: 2180 mm (85.8 in) • Max. Sensitivity: 4 g mm (0.16 g in) • Standard Bed Length: 2170 mm (User Fabricated) (85.4 in) • Journal Dia Range: 19 – 330 mm (0.75 – 13 in) • Journal to Journal Separation: (Based on User 140 – 2030 mm Fabricated Bed) (5.5 – 80 in) • Drive Type: Underslung Belt Drive with manual belt tensioning (User Fabricated - Idler Pulleys by IRD) • Drive Motor Recommended: DC 3.7 kW (5 HP) Variable speed (User Supplied) • Balancing Speed Range: 250 to 6000 RPM (Depends on Driven Rotor Diameter)
