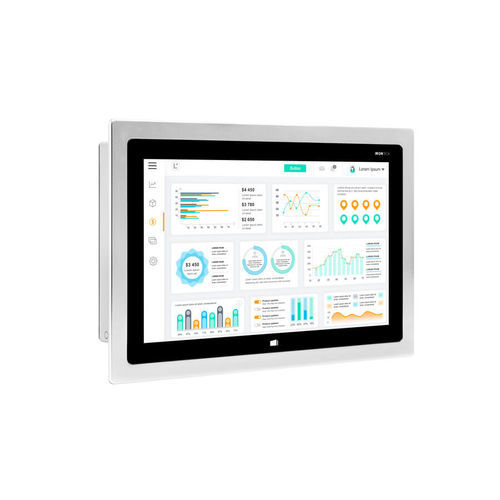

LED backlight panel PC IRTPTH101JC1OOAPCAP capacitive touch screen10.1"1280 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- LED backlight, PCAP capacitive touch screen
- Display size
- 10.1"
- Resolution
- 1280 x 800
- Processor
- ARM® Cortex®-A55 Quad-core, Rockchip RK3566
- Operating system
- Linux
- Construction
- compact, fanless, aluminum frame, stainless steel frames
- Applications
- industrial
- Protection level
- IP65
- Other characteristics
- WiFi, high-brightness, outdoor
- Memory size
4 GB
Description
CPU boards with latest generation Intel® Processors, fanless, low power consumption and exceptional performance.
IP65 Front Bezel protection, available in Anodized Aluminum or Stainless Steel.
Display
Format - 16:9
Brightness - 500 cd/m2
Ratio contrast - 800:1
Angle vision - 170/170
LED Life Time - 50.000 h
System
Hard Drive - 8GB on Board (Ampliable con 2242 NVMe SSD)
Graphics - ARM G52 2 EE
Chipset - RK3566 Sistema en placa (SoC)
Input / Ouput
USB Ports - 4 x USB 2.0 / 1 x USB 3.0
Serial Ports - 1 x RS-485
Ethernet - 1 x Realtek Gigabit Ethernet
Video - 1 x HDMI
Audio - 1 x Audio output
Expansión - -
Optionals
USB Ports - -
Serial Ports - -
Modem - -
WIFI Module - -
Slot PCIe - To Be Consulted
Others - To Be Consulted
Power Supply
Input Voltage - 12Vdc (F.A. Externa 110-220Vac/12Vdc)
