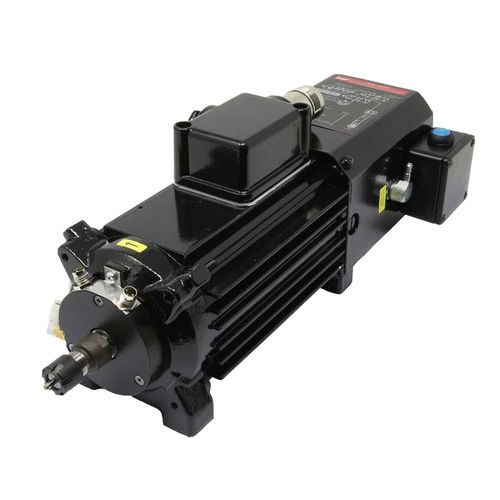

Spindle motor iSA 900W

asynchronousAC380 V

iSA 900W | Spindle motor with automatic tool exchange Features • - robust 2-pole AC motor (asynchronous motor) • - square shape • - protection class IP55, insulation class F • - M23 plug connection • - cast end shield A and B sides • - tool change SK 11 pneumatic (7,5 bar) • - incl. ER 11 collet, Ø 3 mm • - clamping range Ø 1 mm – Ø 7 mm • - intrinsic ventilation B-side • - two precision bearings • - controlled by frequency converter • - fitting bores Ø 5 mm (±0.1) for easy spindle replacement OPTIONAL: • - sensory module • - CoolMin® (external) • - frequency converter SKC 750 • - tool changing station • - suction device • - various collets ER 11 • - mounting plates • - connection cable in different lengths • - sealing air connection
