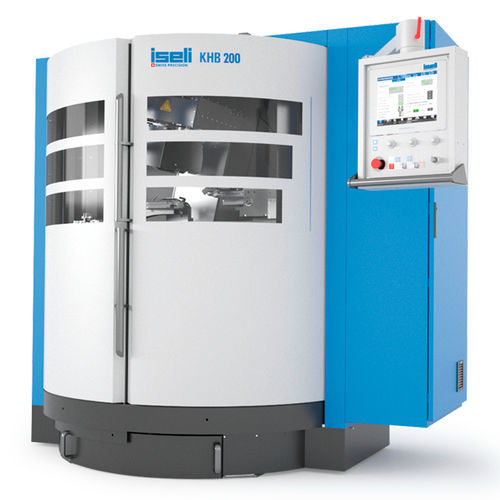

Circular saw blade sharpening machine KHB 200

CNCautomatic

The standard integrated measuring probe records all relevant parameters such as cutting width, blade thickness and rake angle. The zero point can be determined automatically by probing the grinding wheel on the saw tooth. Highlights The space-saving machine concept enables for high ergonomics and excellent operability. Easy access for maintenance work on the control cabinet, coolant pump, pneumatic and extinguishing device. Optimal, fast and safe programming and setting of the circular saw parameters. "LINUX Debian 10" control with multi-core processor Grinding of all tooth geometries, incl. bevel and chamfering, in only one setting Repair tooth detection by means of measuring probe Measuring protocol for cutting angle, clearance angle, bevel grinding tooth back and supernatants After the grinding process, the concentricity is measured on the circumference and protocolled All axes are equipped with high-strength roller linear guides Application programs Tooth back Straight grinding Bevel grinding up to 45° / Chamfering Tooth height difference / triple-chip Group toothing up to 8 teeth Tooth face Straight grinding Bevel grinding up to 30°
