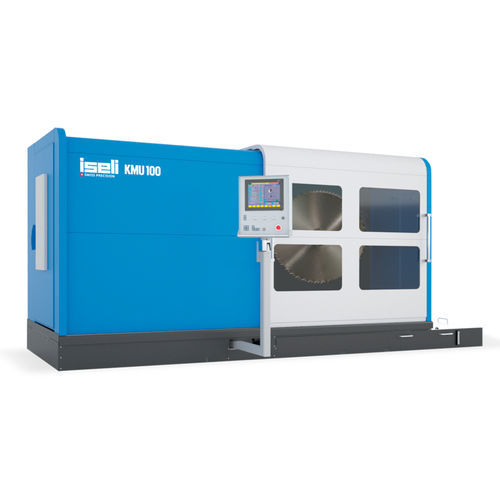

Circular saw blade grinding machine KMU 100

CNCautomated8-axis

Innovation from ISELI! The KMU 100 has been equipped with numerous new technology highlights. It completely grinds carbide-tipped circular saws with a diameter range of 300 to 1800 mm. The machine controls a total of eight CNC axes. Three of them are primarily used for saw blade positioning and feed, the remaining five are used for the movement of the grinding head. The grinding head is the heart of the machine. It consists of a water-cooled grinding spindle and corresponding sensors to ensure process reliability. The grinding spindle has two shaft ends. The face and back grinding wheel is mounted on one end, the two grinding wheels for flank and chip groove grinding on the other. This means that a total of three grinding wheels are driven. The sensors include a 3D measuring probe, with which the saw teeth can be measured precisely, and a sound sensor that carries out the sawtooth probing in automatic mode. In addition, the KMU 100 has wear compensation for the front and back grinding wheels. In cooperation with our experienced process technicians, new sawtooth geometries were developed, especially in the field of metal saws, which set standards in terms of service life and reliability. In order to grind these sawtooth geometries, a high degree of precision and accuracy is required! A sophisticated operating system is available for the operator to enter the complicated sawtooth geometries, which can be operated intuitively and quickly. Recipes are created for the individual saw blades, which can be saved and recalled at any time. This can be done in parallel with the grinding process. A big advantage! This way there is no downtime during input.
