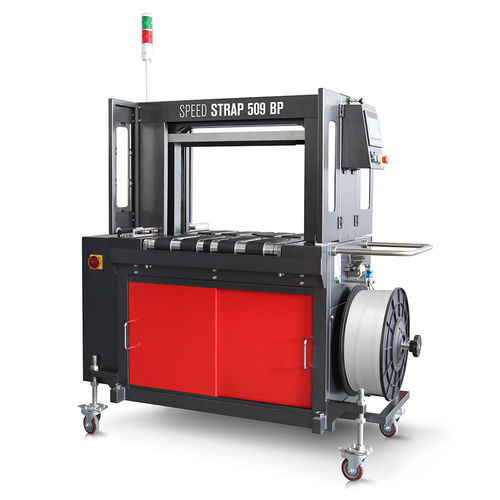

The fully and high performing automatic strapping machine, Speed Strap BP series, is a compact, reliable, and robust machine equipped with a top press to stabilize the products to strap and with motorized belt conveyors. It works with 24Vcc brushless motors and has been improved with central shorter belts that allow to strap small size products. The BP series can automatically work with 1-2 or multiple strappings through infeed and outfeed photocells. It can be inserted in fully automatic production line, ensuring medium-high working capacity. Machine available in SUS 304 stainless steel version.
CHARACTERISTICS OF THE STRAPPING MACHINE
Working table with motorized belt conveyor
Stainless steel safety handle
Double pneumatic top press
Safety guards with magnetic safety switches on each door
Automatic strap feeding
In & out signals displayed on the touch screen
Strapping group controlled by 24volt brushless motors
Single, double or multiple strappings
Transit mode without product strapping
Belts speed adjustable by inverter
Acoustic and 3 colors luminous signal
Loop ejection
7,2’’ touch screen
Strap cutter device
Adjustable working table height
Four pivoting wheels, two of them with brake
Easyfast strap guide disassembly system (without any tool)
Automatic strap ejection at the end of the strap coil
Re-feed strap system
Possibility to use various strap sizes
Strap tensioning up to 45 kg
