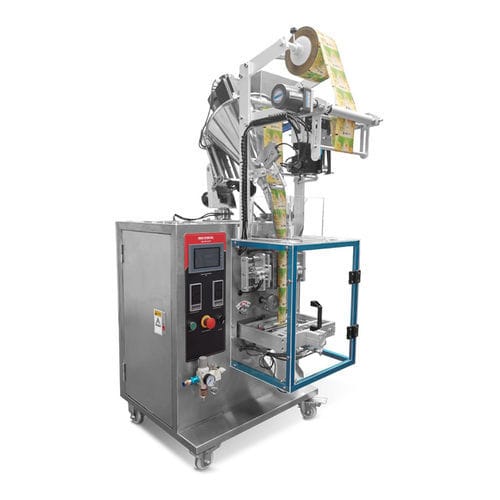

Automatic packaging machine Mini Vert 240 DP

PLC-controlledverticalliquids

Overview
The Mini Vert 240 DP is a vertical automatic powder packaging machine for stick and sachet formats. Standard dosing range is 1–10 g; an optional auger feeder enables 10–50 g. Adjustable package lengths from 40 to 180 mm make it suitable for a variety of small-dose powdered products across food, pharmaceutical, medical and cosmetic sectors.

Control and construction
Control is via Mitsubishi PLC with a color touchscreen HMI for parameter setting and recipe management. Machine frame and product-contact parts are constructed entirely of SUS 304 stainless steel to meet hygiene and cleanability requirements.

Applications

• Food: coffee, sugar, spices, flours, powdered milk, seasonings
• Pharmaceutical and medical powders
• Cosmetic powders

Key capabilities

• Dosing: 1–10 g standard; optional auger for 10–50 g
• Package lengths: 40–180 mm (stick/table formats: L 40–170 mm, W 15–120 mm)
• Production speed: 25–60 packs/min (product dependent)
• Functions: forming, automatic weighing/filling, sealing, cutting; optional code printing
• Sealing/cutting: smooth or zigzag weld
• Compatible films: Al/PE laminate, BOPP/PE laminate, PE-coated paper, Cellophane/PE
• Film width options: 50–240 mm / 50–260 mm

Technical specifications

• Supply voltage: 220 V, 1Ph
• Installed power: 1.5 kW
• Machine structure: SUS 304 stainless steel
• Air supply: 0.6 MPa, 0.3 m³/min
• Machine size: L 1150 x W 900 x H 1700 mm
• Net weight: 200 kg
• Control system: PLC (Mitsubishi) + color touchscreen
• Weighing/filling: auger system (standard/optional)
• Filling volume: 1–10 g | 10–50 g (with auger)
• Stick size: L 40–170 mm, W 15–120 mm
• Speed: 25–60 packs/min
• Sealing/cutting: smooth or zigzag
• Usable films: Al/PE, BOPP/PE, PE-coated paper, Cellophane/PE
• Film width: 50–240 mm; 50–260 mm
