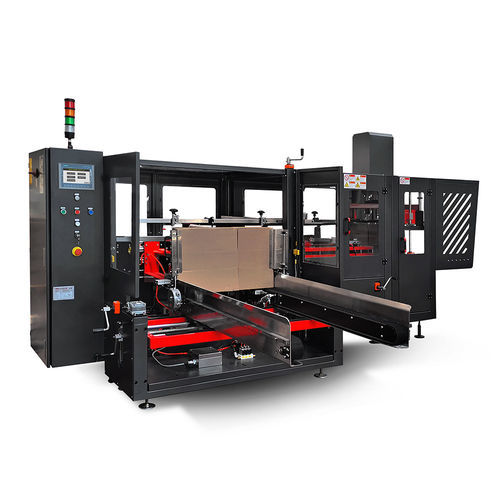

Automatic case erector 50SB TN HM

hot-melt gluebottom sealerpneumatic

Short description
The Speed Former 50SB TN HM is a carton erector that automatically forms and seals the bottom of American-style boxes using a Hot Melt system (Nordson Mesa). It features a motorized horizontal magazine with a capacity of approximately 150 cartons and requires electrical and compressed-air supply. Right- or left-exit configuration available on request.

Phases of the erector's work
A Venturi-powered suction cup group picks a blank from the motorized magazine and holds it during opening using a clamping system. A pusher transfers the opened box to two motorized conveyors which carry it to the flap gluing and closing area. A pneumatic press inside the box secures the freshly glued flaps to complete the cycle. Operation and format/memory management are handled by a PLC with a Siemens touchscreen.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support for purchase
• Excellent price-performance ratio
• 12-month warranty on spare parts
• Short delivery times
• Manufacturer present on the market for over 35 years

Product information
Machine size: L 3400 mm × W 2431 mm × H 1730 mm
Net weight: 1000 kg
Supply voltage: 380 V – 3 ph
Power frequency: 50 / 60 Hz
Installed power: 2.1 kW
Air pressure: 6 bar (operational 5–6 bar)
Box magazine capacity: approx. 150 boxes
Min. box size: L 250 × W 150 × H 150 mm
Max. box size: L 530 × W 400 × H 400 mm
Box type: American style

Machine features and parameters

• Power supply: 380 V – 50/60 Hz – 3 ph
• Installed power: 2.1 kW
• Air pressure: 5–6 bar
• Motorized box magazine: ≈150 (variable with board thickness)
• Production capacity: up to 12 boxes/min (depending on box)
• Machine weight: 1000 kg
• Machine dimensions: L 3400 mm × W 2431 mm × H 1730 mm
• Max noise: ≤ 75 dB
• Emergency mushroom push-button for CE compliance
• Bottom sealing with Hot Melt (Nordson Mesa)
• Worktop height: 650 + 100 mm
• 30 format memories manageable from touchscreen (PLC with Siemens HMI)

Workable product

• Min. box dimensions: L 250 × W 150 × H 150 mm
• Max. box dimensions: L 530 × W 400 × H 400 mm
• Box type: American style

Technical specifications

• Model: Speed Former 50SB TN HM
• Power supply: 380 V – 3 ph – 50/60 Hz
• Installed power: 2.1 kW
• Air pressure: 5–6 bar (typical 6 bar)
• Motorized magazine capacity: approx. 150 boxes (variable)
• Production speed: up to 12 boxes/min (depending on box)
• Machine size (L×W×H): 3400 × 2431 × 1730 mm
• Net weight: 1000 kg
• Worktop height: 650 + 100 mm
• Max noise level: ≤ 75 dB
• Box format range: L 250×W150×H150 mm — L 530×W400×H400 mm
• Box type: American
• Bottom sealing: Hot Melt (Nordson Mesa)
• Control: PLC with Siemens touchscreen (format and memory management, 30 memories)
