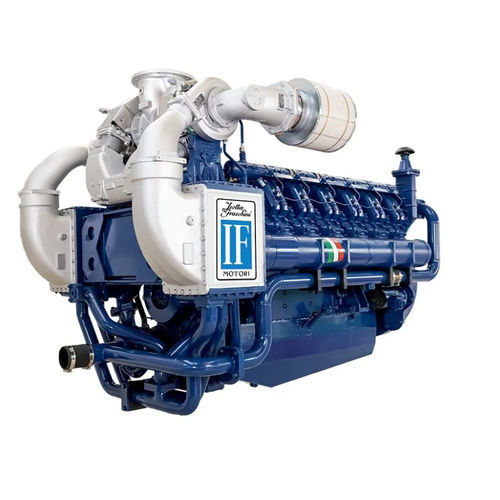

Diesel engine 12V170 G81

12-cylinderturbochargedwith direct fuel injection

90 ° V-12 cylinder diesel engine, 4-stroke with direct fuel injection system, turbocharging by means of turbochargers with intercooling of the charge air. NO. OF CYLINDERS & ARRANGEMENT 12-90° Vee DIRECTION OF ROTATION counterclockwise BORE/STROKE (mm) 170×185 BASIC ENGINE BUILD • Cooling circuit complete with engine-driven centrifugal pump. • Forced engine lubrication by engine-driven gear-type pump, plate type oil/fresh water cooler unit, cartridge type oil filter unit not switchable. • Fuel system complete with high pressure injection pumps and feed pump. • Electronic type speed governor. • Fuel filters not switchable. • Electric starting motors (24 Volt – 2×6.5 kW). • Exhaust counterflange. • Crankcase breathing system, open circuit. • Emergency engine stop electrovalve. • Flywheel and bell-housing for SAE 00 – 2 1”/18” connection. • Sensors fitted on engine: engine cooling fresh-water high temperature with alarm contact and engine low oil pressure transmitter with alarm contact. • Alternator for battery charging (28 Volt – 60A). • Interfaces predisposition for water/oil heaters or for connection of external pre-heating unit. • Industrial painting. • Workshop tests. • Operating and maintenance manual (commercial type). • Spare parts catalogue (commercial type). • Standard tools kit. • Road worthy package.
