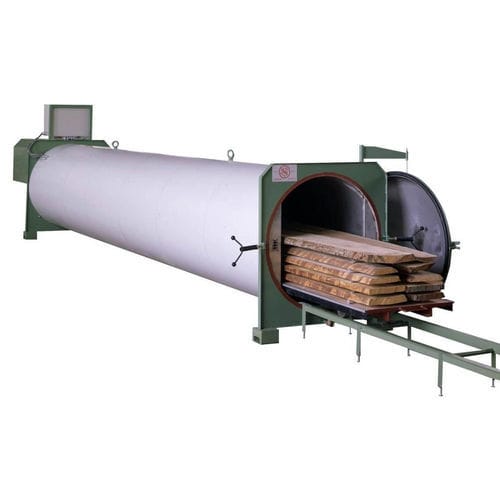

Vacuum dryer EM2V

electricbatchair

Product overview
The EM2V and EM5V vacuum dryers are industrial vacuum drying units designed for small to medium carpentry workshops to dry limited volumes of timber with controlled, low‑temperature cycles. The system is managed by a Vacutronic control computer for process programming and can be connected to a Windows PC for remote monitoring and cycle archiving. The control supports three operating modes to suit different production needs.

Drying process
Drying is performed under vacuum at low temperatures to promote water migration and evaporation without thermal shocks that cause cracks or deformation. A steam generator maintains surface humidity to prevent surface checking while a condenser removes suspended vapor. An electric fan with heating elements circulates conditioned air through the timber stack. Periodic vacuum cycles trigger water transmigration from cell interiors to surfaces; condensate is drained regularly to stabilise chamber conditions.

Operation modes

• Completely automatic
• Semi-automatic
• Manual

Main advantages

• Controlled drying results: minimal cracking and warping; no significant colour changes; no internal tensions; mechanical strength preserved.
• Large material range: suitable for thick sections and timber with high initial moisture (planks, boards, semi-finished items).
• Low operating costs: reduced thermal losses and efficient use of electrical and thermal energy; limited manual intervention.
• Low maintenance: compact, rational construction with simple automatic devices and anticorrosive materials.

Main features

• Autoclave in AISI 304 stainless steel
• 50 mm insulation lining
• Electric control panel with microprocessor (Vacutronic) for automatic run/stop and cycle programming
• Humidity probes on sample element
• Manual trolley extraction: capacity for a 700×700 mm pile, length up to 6,000 mm; external sliding tracks
• Three electrical heating elements positioned at the autoclave base (3 × 2.5 kW in EM2V)
• Hydraulic vacuum pump with condensate system
• Steam generator for humidification
• 600 mm diameter fan
• 20 mm thick aluminium strips

Parts table (reference mapping)
1 | Door | 5 | Steam generator
2 | Wood timber | 6 | Vacuum pump
3 | Electrofan | 7 | Cart
4 | Vacutronic framework | 8 | Discharge valve

Technical description (EM2V vacuum dryer)
Electrical resistors: 3 × 2.5 kW
Max timber dimensions for drying: 700 × 700 × 6,000 mm
Footprint (base): 1,070 × 7,000 mm
Overall height (clearance): 1,200 mm
Total weight (EM2V example): 800 kg
Electric connection: 380 V, 50 Hz
Installed power: 9.25 kW
Average hourly electrical consumption: approx. 5 kW/h

Technical specifications

• Model/series: EM2V and EM5V (EM vacuum dryer series)
• Autoclave material: AISI 304 stainless steel (or painted steel for non-tannin woods per model)
• Insulation thickness: 50 mm
• Control: Vacutronic microprocessor control with PC connectivity for monitoring and archiving
• Operation modes: completely automatic, semi-automatic, manual
• Humidity control: probes and sample element; condenser to precipitate vapor
• Humidification: integrated steam generator
• Vacuum system: hydraulic vacuum pump with condensate handling
• Heating: electrical resistors (e.g. 3 × 2.5 kW for EM2V)
• Air circulation: 600 mm diameter fan
• Trolley capacity: stacks 700 × 700 mm, length up to 6,000 mm; manual trolley removal on external tracks
• Aluminium strips thickness: 20 mm
• Max drying size: 700 × 700 × 6,000 mm
• Footprint/base: 1,070 × 7,000 mm; height: 1,200 mm
• Weight (EM2V): approx. 800 kg
• Electrical supply: 380 V, 50 Hz
• Installed power: 9.25 kW; average consumption: ~5 kW/h
