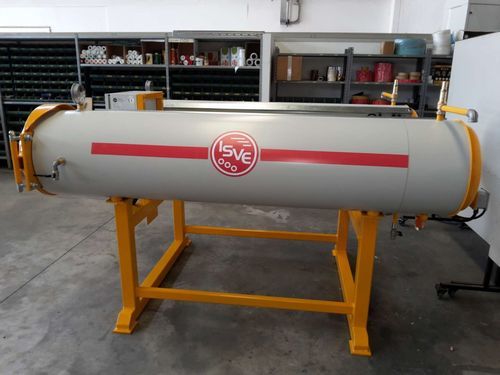

Electric vaporizer

for wood

Description
ISVE electric vaporizers enable plasticization of semi-finished wood components to prepare material for bending and deformation. Available with single or double autoclave configuration, units are electrically powered and supplied in variable lengths to meet customer requirements.

Main features

• Complete vaporization equipment composed of 1 or 2 autoclaves in AISI 304 stainless steel, 400 mm diameter, welded bottom, hinged cover with screw hand-wheel closure.
• Insulating layer: 50 mm thickness insulation covered by pre-painted steel.
• Support framework: painted steel section bar with primer and finish coat.

Advantages

• Design based on years of R&D for controlled vaporization processes and consistent quality.
• Ensures optimal wood plasticity necessary for subsequent bending and stabilization of semi-finished products.
• External moisture of treated pieces reaches up to 20% under standard conditions.
• Condensation inside the cylinder can increase moisture up to 40%, improving speed and effectiveness of plasticization.

Performance ranges
FROM - TO
Stack sizes m3: 5.5 - 21
Internal length m: 4.5 - 18
Power kW: 10 - 22
Vacuum mmHg: 150 - 650
Weight kg: 3,000 - 15,000

Technical specifications

• Autoclaves: AISI 304 stainless steel, 400 mm diameter, welded bottom, hinged cover, screw hand-wheel closure.
• Insulation: 50 mm insulating material, pre-painted steel cladding.
• Support frame: painted steel section bar with primer.
• Configurations: single or double autoclave.
• Internal length: variable, approx. 4.5–18 m.
• Electrical power: 10–22 kW.
• Vacuum range: 150–650 mmHg.
• Stack capacity: 5.5–21 m3.
• Weight: approx. 3,000–15,000 kg.
• Typical external moisture after treatment: up to 20% (up to 40% with condensation).
