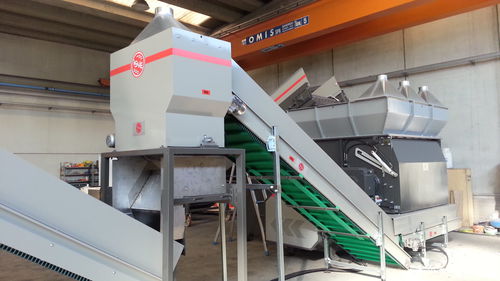

Primary shredder MS 48-200 IT

single shaftfor medical wastepaper

Product description:
The MS 48-200 IT single-shaft shredder is designed for processing large volumes of industrial waste. A hydraulically driven pusher feeds material into a tool-holder rotor that performs size reduction. An interchangeable screen determines the final particle size. The machine is suitable for continuous in-line operation.

Main features:

• Installed rotor power: 75 + 75 kW (optional 90 + 90 kW)
• Hydraulic unit power: 11 kW (15 HP)
• Drive: belt and pulley system with 2 hydraulic couplings on the motor shaft
• Number of rotors: 1
• Rotor Ø × length: 480 mm × 2000 mm
• Pusher stroke: 1000 mm (usable run: 850 mm)
• Reversible tools: 122 (4 usable sides)
• Upper/lower fixed blades: 8 / 8
• Average rotor speed: 73 rpm
• Approx. weight: 13,000 kg
• Production capacity: 3.5–5 t/h
• Safety devices: emergency stop, drawer reversal system, hydraulic coupling

Application notes:

• Suitable for shredding waste wood, thick plastics, paper, confidential documents, extruded sheets, rubber scraps, electric cables, hospital waste and similar materials
• Can be integrated in continuous production lines and combined with feeding and suction systems

Characteristics of the shredder:

• Welded steel frame
• Support for barrel roller bearings with sealing against dust and liquids
• Thick rotor (Ø 480 mm, L 2000 mm) fitted with 122 tool-holder plates and 122 high-alloy anti-wear tools
• 16 adjustable counter-blades in highly alloyed anti-wear steel
• Hydraulically driven pusher drawer with push cylinders and 850 mm usable run
• Hydraulic unit with gear pump and oil cooling radiator
• Belt and pulley drive to reduce mechanical damage from rotor vibrations
• Hydraulic coupling between motor and reduction group
• Top-loading welded sheet metal hopper
• Interchangeable screen to set shredded material size
• Discharge system: to be defined per installation

Characteristics of control system:

• Electrical switchboard to CE standards with torque limiter that reverses rotor direction on overload
• SIEMENS S7-1200 PLC controlling peripheral units
• 6-inch colour touchscreen for parameter adjustment
• Auto-regulation software AUTO TUNING ISVE
• Software prepared to control loading system, shredder and suction plant
• Emergency stop and safety control functions
• ISVE MAINTENANCE PROGRAM for scheduled maintenance alerts
• Provision for remote assistance and SAFETY SERVER CONNECTION ISVE for real-time supervision
• CE conformity

Accessories:

• ISVE Server Connect for remote monitoring, parameter adjustment and software updates via internet connection

Characteristics / technical specifications:

• Model: MS 48-200 IT (2022 VERSION)
• Rotor power: 75 + 75 kW (option 90 + 90 kW)
• Hydraulic unit power: 11 kW
• Motors: 2 × 75 kW (multi-voltage, IE3) + 1 × 11 kW (hydraulic)
• Drive: belt and pulley system with 2 hydraulic couplings on motor shaft
• Number of rotors: 1
• Rotor Ø × length: 480 mm × 2000 mm
• Reversible tools: 122 (4 usable sides)
• Upper/lower fixed blades: 8 / 8
• Pusher stroke: 1000 mm (usable run 850 mm)
• Cutting chamber: 2000 × 1000 mm
• Average rotor speed: 73 rpm
• Production: 3.5–5 t/h
• Weight: 13,000 kg
• Standards & control: CE; SIEMENS S7-1200 PLC; 6" touch panel; AUTO TUNING ISVE
