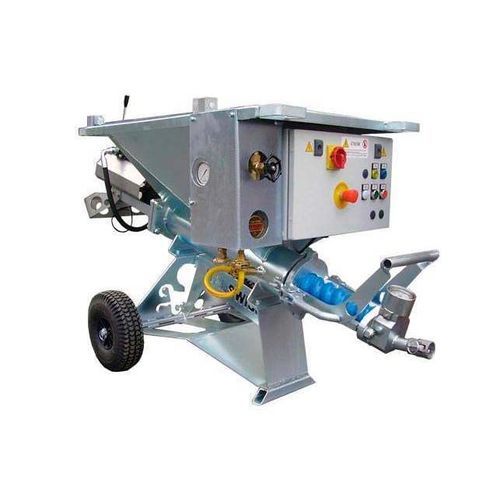

Mortar pump Marmotta Idraulica

The Marmotta grout pump is a result of extensive experience in grouting and drilling. It allows for the continuous and trouble-free mixing and pumping of cement mortars with a maximum grain size of 3 mm. Dry material is introduced into the pump, then it passes through a worm conveyor to a mixing chamber, where it is mixed with water. The ready mixture flows to the stator and rotor and is pumped with a maximum pressure of 80 bar and a maximum distance of 100 m. The flow rate depends on the installed pump body (from MP2 - 240 l/h to MP13 - 4500 l/h) and the selected velocity (240 or 400 rpm). The Hydraulic version of Marmotta 2016 is driven by a 125cc hydraulic motor and is equipped with a battery for the control panel supply. The user is immediately aware of any possible problems thanks to control panel indicating lights, which helps to avoid time wasting. - MP2: 240 rpm – Flow rate 240 l/h – Pmax 60 Bar - 400 rpm – Flow rate 400 l/h – Pmax 60 Bar - MP3: 240 rpm – Flow rate 750 l/h – Pmax 70 Bar - 400 rpm – Flow rate 1250 l/h – Pmax 70 Bar - MP8: 240 rpm – Flow rate 1380 l/h – Pmax 60 Bar - 400 rpm – Flow rate 2350 l/h – Pmax 60 Bar - MP13: 240 rpm – Flow rate 2700 l/h – Pmax 60 Bar - 400 rpm – Flow rate 4500 l/h – Pmax 60 Bar - Mixes and pumps cement mortars up to 3 mm grain size - Continuous operation - Maximum pressure: 80 bar - Maximum pumping distance: 100 m - Flow rate: 240 l/h to 4500 l/h depending on pump body and speed - Selectable speed: 240 or 400 rpm - Driven by 125cc hydraulic motor - Equipped with battery for control panel - Control panel with indicator lights for immediate problem detection
