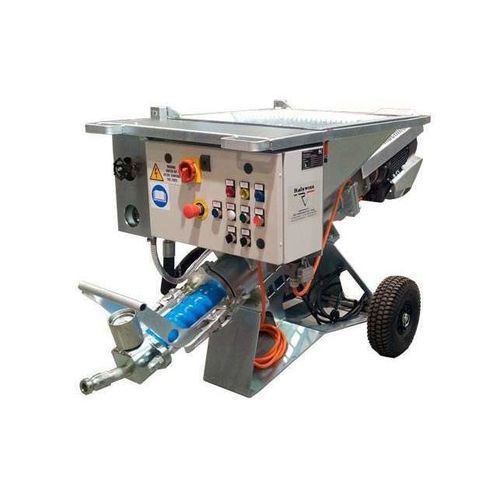

Mortar pump Marmotta Tronic

The Marmotta grout pump is the result of extensive experience in grouting and drilling. It allows for the mixing and pumping of cement mortars with a maximum grain size of 3 mm, continuously and without issues. Driven by a 4kW electric motor, it features an electronic inverter for gradual start and energy efficiency. The TRONIC version offers two motor speeds (240 or 400 rpm). Dry material is introduced into the pump, passing through a worm conveyor to a mixing chamber where it is mixed with water. The ready mixture flows to the stator and rotor, pumping at a maximum pressure of 80 bar and a maximum distance of 100 m. The flow rate varies with the installed pump body, from MP2 - 240 l/h to MP13 - 4500 l/h. - MP2: 240 rpm – Flow rate 240 l/h – Pmax 60 Bar 400 rpm – Flow rate 400 l/h – Pmax 60 Bar - MP3: 240 rpm – Flow rate 750 l/h – Pmax 70 Bar 400 rpm – Flow rate 1250 l/h – Pmax 70 Bar - MP8: 240 rpm – Flow rate 1380 l/h – Pmax 60 Bar 400 rpm – Flow rate 2350 l/h – Pmax 60 Bar - MP13: 240 rpm – Flow rate 2700 l/h – Pmax 60 Bar 400 rpm – Flow rate 4500 l/h – Pmax 60 Bar - Mixes and pumps cement mortars up to 3 mm grain size - Continuous operation - 4kW electric motor with electronic inverter - Selectable motor speeds: 240 or 400 rpm - Maximum pressure: 80 bar - Maximum pumping distance: 100 m - Flow rate: 240 l/h (MP2) up to 4500 l/h (MP13)
