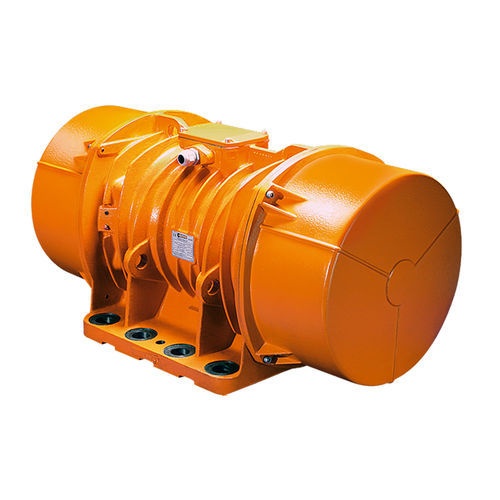

Electric vibrator MVSI-E series

motorizedexternalindustrial

The MVSI-E series has been designed for use in industrial processes in environments with a potentially explosive atmosphere, due to the presence of explosive gas and dust, in compliance with ATEX Directive (94/9/EC). In particular, the MVSI-E series can be used in areas 1 and 2 (gas) and in areas 21 and 22 (dusts). CATEGORIY II 2 GD LEVEL OF PROTECTION Ex e IIC Gb, Ex tb IIIC Db TEMPERATURE CLASS see technical details CE CERTIFICATE LCIE 06 ATEX 6092 X AREAS OF USE 1, 2, 21, 22 Power supply Three-phase voltage from 220V to 690V, 50Hz or 60Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile. Polarity 2, 4, 6 and 8 poles. Functioning Continual service (S1) at maximum declared centrifugal force and electric power. Centrifugal force Insulation class Class F (155°C). Electric motor Three-phase asynchronous type. Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes. The rotor is die cast aluminum.
