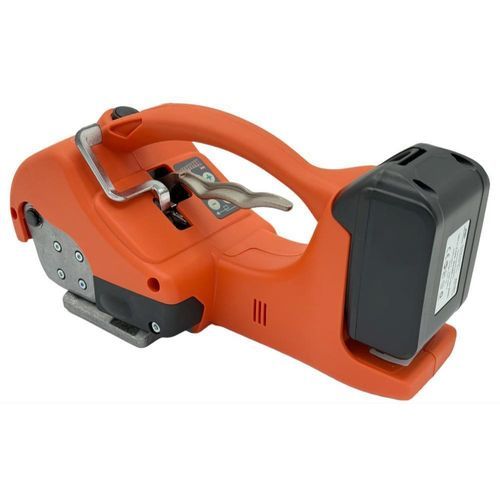

Manual strapping tool ITA 22

battery-poweredfor PP-PET strapsfor polypropylene straps

Product overview
ITA 22 is an entry-level battery strapping tool for light industrial and packaging applications using 13 mm and 16 mm PP and PET straps. Designed for one-hand operation, it enables operators to move from manual to battery-powered strapping with simple controls and quick strap size changes.

Key features

• Manual operating mode
• One-hand operation and ergonomic handling
• Strap width change without guide replacement
• Digital control panel

Benefits

• Adjustable tension range: 600 N – 1500 N
• Long-life 18V Li‑Ion 5Ah battery for many cycles per charge
• Lightweight design for single-hand use
• Friction-weld sealing with high seal efficiency (no seal required)
• Robust, well-protected motor housing

Applications
Suitable for boxes and cartons, glass and ceramic industries, food packaging, fruit and vegetable sector and other light strapping operations in industry.

Battery and technology
Equipped with an 18V 5Ah Li‑Ion battery providing numerous duty cycles per charge without memory effect. Uses friction-weld sealing technology to ensure reliable seals without separate seals.

Technical specifications

• Model: ITA 22
• Strap types: PP and PET
• Strap widths: 13 mm and 16 mm
• Operating mode: Manual
• Tension range: adjustable 600 N – 1500 N
• Battery: 18V Li‑Ion, 5 Ah
• Sealing technology: friction weld (no seal required)
• Control: Digital control panel
• Design: Lightweight, one-hand operation; strap size change without guide replacement
• Dimensions (L×W×H): 316 mm × 140 mm × 160 mm
• Weight (with battery): 4 kg
• Tensioning speed: 8 m/min
• Seal efficiency: ~75% of strap break load*

*Varies with strap type.
