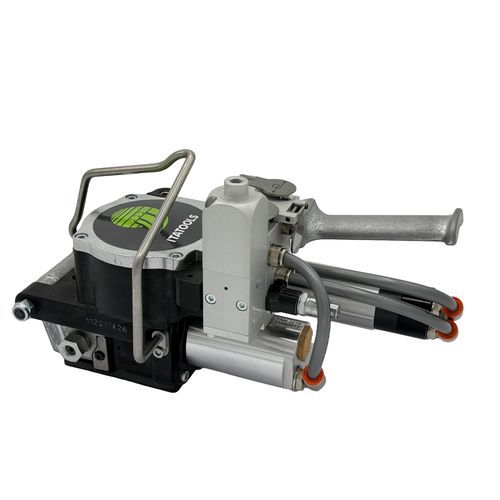

Pneumatic strapping tool ITA 12

for polyester straps

Short description
ITA 12 is a pneumatic strapping tool for 16 mm and 19 mm PET (polyester) strap. Available in 5000 N and 6000 N versions, it is lightweight and designed for one-hand operation with friction weld sealing.

Features

• Operable with one hand
• Two versions: max tension 5000 N or 6000 N (both adjustable)
• Friction weld seal technology (no separate seals required)
• Aluminium cast body with suspension hook fitted
• Dimensions: 300 x 150 x 175 mm; weight: 5.1 kg
• Operating pressure: up to 6.5 bar (≈92 psi)

Benefits

• Adjustable tension to suit different applications
• High seal efficiency using friction weld sealing
• High tension force for secure strapping
• Durable construction with low maintenance requirements
• Compact and lightweight for improved operator ergonomics

Product details
ITA 12 is designed for 16 mm and 19 mm PET strap and is offered in two versions delivering a maximum adjustable tensioning force of 5000 N or 6000 N. The tool employs friction weld sealing to ensure high joint efficiency without separate seals. Typical operating pressure is up to 6.5 bar (≈92 psi). Typical applications include timber, corrugated packaging, steel, logistics and brick industries. Tensioning speed: 6 m/min @ T129933 and 4 m/min @ T129953. Seal efficiency: approximately 80% of strap breaking load (depends on strap type).

Technical specifications

• Strap width: 16 mm and 19 mm
• Strap type: PET (polyester)
• Tool type: Pneumatic strapping tool
• Maximum tensioning force: 5000 N or 6000 N (both adjustable)
• Seal technology: friction weld (no separate seal required)
• Body material: aluminium cast
• Design: lightweight, single-hand operation
• Accessories: suspension hook fitted
• Operating pressure: up to 6.5 bar (≈92 psi)
• Tensioning speed: 6 m/min @ T129933 — 4 m/min @ T129953
• Seal efficiency: approx. 80% of strap breaking strength*
• Dimensions (L×W×H): 300 × 150 × 175 mm
• Weight: 5.1 kg
