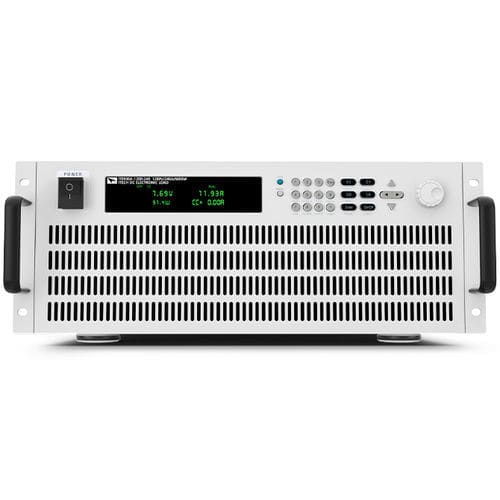

High-power electronic load IT8900A/E

DCLANRS-232

IT8900A/E series high performance high power DC electronic load provides three voltage ranges 150V/600V/1200V, stand-alone power from 2kW to 54kW. IT8900A/E series, with ultra-wide voltage and current range, controlled by an independent master unit. The power expands to 600kW by master-slave paralleling. Ultra-high power density, 6kW is with only 4U height. IT8900A/E series has eight (A series) / four (E series) working modes, faster loop response and current rising and falling speed, as well as dynamic mode, OCP test, OPP test, automatic test and battery test functions. Built-in CAN, LAN, GPIB, USB, RS232 and analog interfaces, etc., IT8900A/E series has full protection function, which can be applied to power battery discharge, DC charging station, on-board charger (OBC), power electronics and other power electronics products. ♦ Stand-alone input power: 2kW, 4kW, 6kW, 12kW, 18kW, 24kW, 30kW, 36kW, 42kW, 48kW, 54kW ♦ Voltage range: 150V, 600V, 1200V ♦ Current range: up to 600A for 4u modules (up to 2400A for 27u racks) ♦ Master/slave paralleling control, maximum power expands to 600kW ♦ Multiple operating modes: CC, CV, CR, CP, CC+CV, CV+CR, CR+CC, CP+CC *1 ♦ Transient over-power loading capability *3 ♦ Adjustable CV loop speed, match different power supplies ♦ 30kHz high-speed dynamic mode, adjustable current rising and falling time *2 ♦ 500kHz high-speed voltage and current sampling rate ♦ Time measurement, battery discharge test function ♦ Short circuit simulation, automatic test function ♦ Soft start and soft stop prevent voltage fluctuations at on/off ♦ Timing control list programming ♦ I-monitor
