Mobile robot 0.0.725.47

compactpack

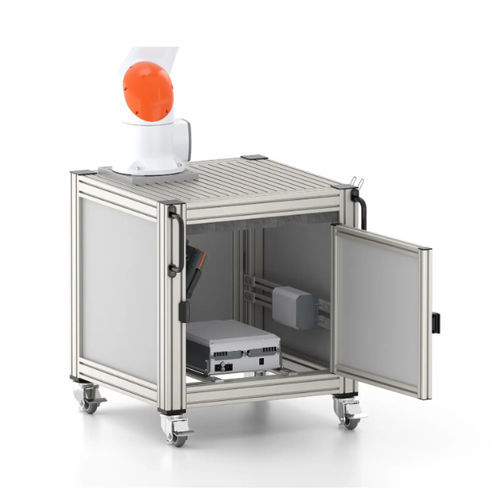

The robot island serves as a compact base frame for mobile working with robots. The base cabinet offers sufficient space for the control unit, battery pack etc. Cables can be routed to the robot arm through a brush strip above the two doors. The robot island can be easily moved to a new location using jacking castors and two handles. Extendable feet with individual height adjustment ensure that the cobot application stands securely during operation. A practical foot pedal allows the castors to be lowered or raised without bending down. - Mobile with heavy-duty lifting castors with feet and integrated height adjustment - Frame prepared for mounting sensors and other accessories - Base cabinet with suspension for the control unit, battery, etc. - Work area with continuous grooves - Integrated base cabinet with one door - Two handles for easy transportation - Cobot connection with Robot Mounting Plate 8 280x280 (0.0.709.45) Note: Depending on the scaling of the solution, operating mode and robot model, the stability and design must be checked. On request, item can assist you in modifying this application to meet the individual requirements of your project.
