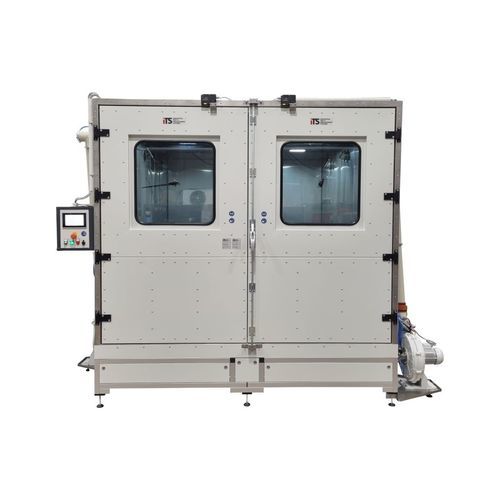

Dust chamber SK-XLclimaticenvironmentalsand
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Test type
- environmental, dust, sand
- Product applications
- for electrical equipment, for battery, for heat pump
- Application domain
- European standards-compliant, international standards-compliant
- Configuration
- floor-standing, walk-in, modular
- Light source
- LED
- Number of doors
- 1-door, 2 doors
- Chamber material
- stainless steel
- Options and accessories
- touchscreen-controlled, PLC-controlled
- Other characteristics
- automatic
- Length
2,600 mm
(102.36 in)- Width
2,250 mm
(88.6 in)- Depth
2,000 mm
(79 in)
Description
Product overview
The SK series dust chambers offer a fully automated solution for conducting dust exposure tests. The vacuum system for tests according to DIN EN 60529 is fully automated. The chamber regulates the vacuum to 20 mbar and automatically determines the test duration.
Standards
Technical information
Test chamber dimensions (W x D x H) [mm] : 2600 x 3600 x 2000
Door opening W x H [mm] : 2400 x 1900
Number of doors with 1 windshield wiper : 2
Viewing window size W x H [mm] : 2 windows: each 710 x 680
External dimensions W x D x H [mm] : 3800 x 3700 x 2500
Chamber weight [kg] : 3000
Number of dust blowers : 6
Number of vacuum devices : 1
Test room lighting : Yes / LED
Cable entry [number / diameter mm] : after voting
Load capacity test grid [kg] : Max. 1000 / (Distribution: 500 kg/m²)
Control panel position : exclusive links
Caractéristiques / spécifications techniques
The SK series dust chambers offer a fully automated solution for conducting dust exposure tests. The vacuum system for tests according to DIN EN 60529 is fully automated. The chamber regulates the vacuum to 20 mbar and automatically determines the test duration.
Standards
- IEC 60529:1989 + A1:1999 + A2:2013
- ISO 20653
- EN 60068-2-18
- JIS 207D
- IEC 60598-1
- L.V. 124
- GS 95003-4
- MIL STD 810G (Special Cabin)
Technical information
Test chamber dimensions (W x D x H) [mm] : 2600 x 3600 x 2000
Door opening W x H [mm] : 2400 x 1900
Number of doors with 1 windshield wiper : 2
Viewing window size W x H [mm] : 2 windows: each 710 x 680
External dimensions W x D x H [mm] : 3800 x 3700 x 2500
Chamber weight [kg] : 3000
Number of dust blowers : 6
Number of vacuum devices : 1
Test room lighting : Yes / LED
Cable entry [number / diameter mm] : after voting
Load capacity test grid [kg] : Max. 1000 / (Distribution: 500 kg/m²)
Control panel position : exclusive links
Caractéristiques / spécifications techniques
- Model: SK-XL
- Brand: iTS GmbH
- Item number (SKU): 14623
- Test chamber dimensions (W x D x H) [mm]: 2600 x 3600 x 2000
- Door opening W x H [mm]: 2400 x 1900
- Number of doors with 1 windshield wiper: 2
- Viewing window size W x H [mm]: 2 windows: each 710 x 680
- External dimensions W x D x H [mm]: 3800 x 3700 x 2500
- Chamber weight [kg]: 3000
- Number of dust blowers: 6
- Number of vacuum devices: 1
- Test room lighting: Yes / LED
- Cable entry [number / diameter mm]: after voting
- Load capacity test grid [kg]: Max. 1000 / (Distribution: 500 kg/m²)
- Control panel position: exclusive links
Catalogs
No catalogs are available for this product.
See all of iTS GmbH‘s catalogsOther iTS GmbH products
Dust Test Chamber SK
