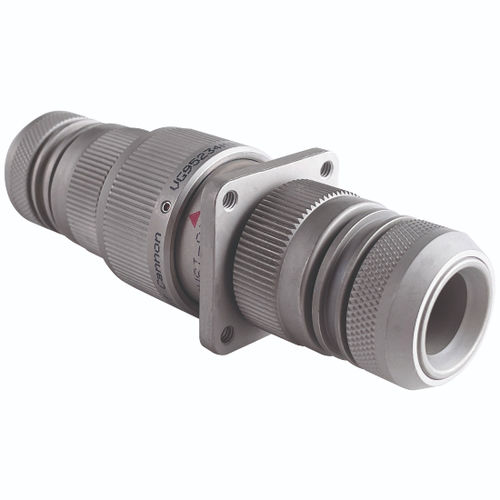

Electrical power supply connector VG Series
bayonetzinctin

electrical power supply connector
electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Connection type
bayonet
Material
zinc, tin
Field
military, for harsh environments, commercial, for harsh environments, for harsh environments
Protection class
IP68
Other characteristics
for harsh environments, corrosion-resistant

Description

ITT Cannon’s Tin Zinc J Plating is an ultra-harsh environment formulation that meets or exceeds the VG (German Military) performance requirements of cadmium. It is a highly conductive (< 5m ohm) and corrosion-resistant (500 hours static / 5 days cyclic salt spray) matt grey, non-reflective solution. Backward compatible to ITT cadmium and other platings, it is immediately available on ITT Cannon VG Series and their commercial equivalents including CA Bayonet ~ 140 layouts, 1 to 65 pins Reverse bayonet coupling Max Current up to 250A Sealing up to IP68 (1bar / 16h) and IPx9k Extensive range of backshells and accessories Fully VG95234 qualified KPSE ~ 35 layouts, 2-61 pins Bayonet coupling Up to 13A Sealing up to IP68 (0,2bar / 48h) Clip-in retention system for fast and simple assembly Fully VG95328 qualified CGE Single pole high power contacts Bayonet coupling High power up to 900A Sealing up to IPx8 (1bar / 16h) and IPx9k Visual, audible and tactile locking system Fully VG96929 qualified
