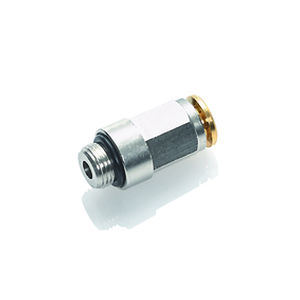

Pneumatic fitting HDS 01threadedpush-inISO
Add to favorites
Compare this product
Characteristics
- Applications
- pneumatic
- Attachment
- threaded, push-in
- Norms
- ISO, DIN
- Material
- nickel-plated brass
- Gender
- male
- Other characteristics
- poppet, high-pressure, flexible, modular
- Diameter
4 mm, 6 mm
(0.157 in, 0.236 in)- Operating pressure
250 bar
(3,625.94 psi)
Description
– Fitting for the high-pressure range
– Tube assembly with one movement
– Release ring with integrated clamp
– For tubes in various materials
– Small-scale and low weight
– NBR O-ring
– Modular, flexible structure
Operating temperature
-40°C to +150°C
Materials
Brass housing, nickel-plated
HNBR seals
Brass socket
Brass thrust ring, polished
Parallel thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, UNI 7707
Lubricating oils, greases
CW614N and CW617N
CW614N
CW614N
Thread
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, UNI 7707
Cylindrical with O-ring seal
Tubes
Tolerances: ±0,05mm
Recommended materials: PA6-6, tubes suitable for high pressures
