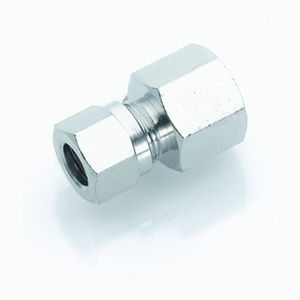

Pneumatic fitting 202
compressioncutting ringstraight

pneumatic fitting
pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
cutting ring, compression
Configuration
straight
Material
nickel-plated brass
Gender
female
Other characteristics
corrosion-resistant
Diameter

Min.: 4 mm
(0.157 in)

Max.: 18 mm
(0.709 in)

Operating pressure

60 bar
(870.23 psi)

Description

Compression Fittings Type 200 – Brass fittings – High resilience due to cutting ring and nut – Cutting rings in line with DIN 3861 – Swivel nuts in line with DIN 3870 – Nickel-plating for corrosion protection – Connection sizes from 1/8“ to 1/2“ Operating temperature max. +150°C Dependent on the temperature range of the tube/pipe used and the temperature used Dependent on the pressure range of the tube/pipe used and the temperature used Materials Body and swivel nut, brass, nickel-plated Cutting ring, brass polished CW614N and CW617N CW614N Thread Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (ISO 7 / DIN 2999) Tubes/pipes Suitable for metal pipes (copper, brass, steel, etc.)and for plastic pipes with inner reinforcement
