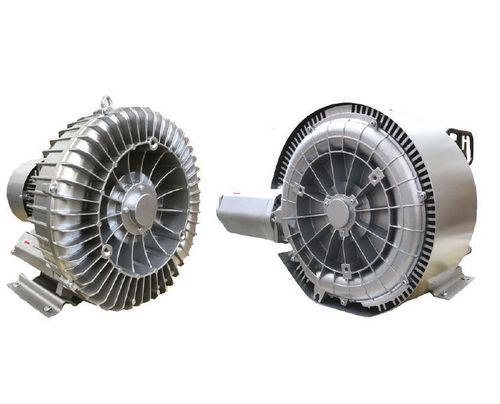

Air blower SC802PFside-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, conveying, cooling, drying, filter, for food applications
- Other characteristics
- aluminium, oil-free
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 1,050 m³/h
(37,080.4 ft³/h)- Operating pressure
Min.: 0 mbar
(0 psi)Max.: 350 mbar
(5.076 psi)
Description
SC802PF
The construction of the side channel blowers is based on the lateral ducts principle. The blowers can operate either as exhauster or compressor fans and are designed for continuous service. Full die-cast aluminium construction grants the maximum sturdiness and flexible operation. No lubrication is needed since there is no contact between static and rotating parts and NSK bearings are permanently pre-lubricated. Dedicated silencers help to achieve a low noise level.
Capacity
Max
m3/h
900
1050
