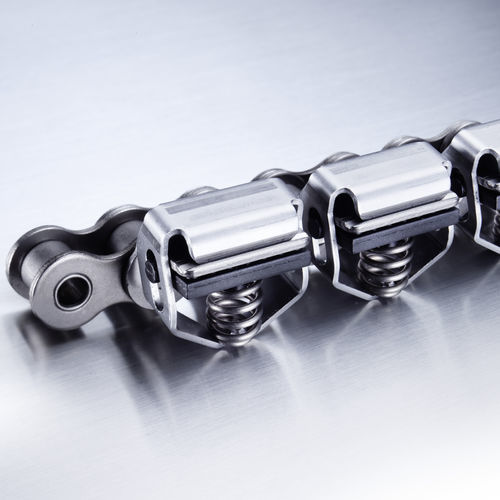

Gripper chain Version Atransmissionstainless steelcorrosion-resistant
Add to favorites
Compare this product
Characteristics
- Type
- transmission
- Material
- stainless steel
- Configuration
- gripper
- Other characteristics
- corrosion-resistant, wear-resistant
- Product applications
- for the food industry, for the packaging industry
- Chain pitch
12.7 mm, 15.875 mm
(0.5 in, 0.625 in)
Description
Simplex and duplex chain 1/2 x 5/16" acc. to ISO 606
Gripper with 1 tip, special designs on request
Retention force is dependent on material conveyed and spring design – different number of coils and wire spring diameters available
The gripper opens when it runs against a control disc (e.g. sprocket hub), causing it to swivel away outwards
Food-grade initial lubrication
Sprocket designs on request
