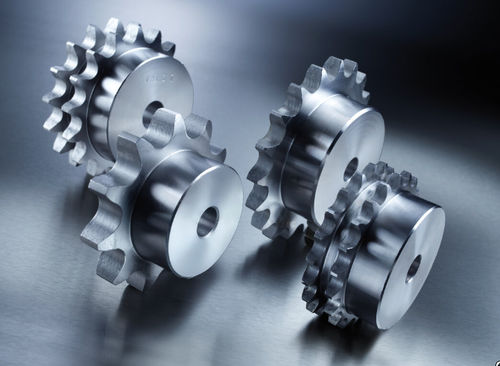

Roller chain sprocket wheel 08B

singledoubletriple

Overview
Find the correct sprockets for roller chains with the iwis 08B series. The family covers a wide range of tooth counts and is compatible with ISO 606 chain sizes to match simplex, duplex and triplex assemblies.

Standards

• ISO 606 (04B-1 to 32B-3)

Available assemblies / strand options

• all
• simplex
• duplex
• triplex

Available teeth counts (filter options)

• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37
• 38
• 39
• 40
• 45
• 57
• 76
• 95

Variants / Examples (product variants listed on the page)

• sprocket 08B-2 33 teeth — Part no.: 81006093
• sprocket 08B-2 38 teeth — Part no.: 81006098
• sprocket 08B-2 24 teeth — Part no.: 81006084
• sprocket 08B-1 15 teeth — Part no.: 81006025
• sprocket 08B-3 27 teeth — Part no.: 81006122
• sprocket 08B-1 12 teeth — Part no.: 81006022
• sprocket 08B-3 15 teeth — Part no.: 81006110
• sprocket 08B-1 57 teeth — Part no.: 81006059
• sprocket 08B-1 76 teeth — Part no.: 81001888
• sprocket 08B-3 95 teeth — made to order (please request)

Filters / Controls shown on page

• Assembly selector (all / simplex / duplex / triplex)
• Teeth selector (multiple teeth counts available)

Note
Page lists 111 product variants for the sprocket 08B family available in different tooth counts and assembly types. Some large-tooth-count variants are manufactured to order on request.

Technical specifications

• Product family: sprocket 08B series
• Brand: iwis
• Standards: ISO 606 (04B-1 to 32B-3)
• Number of listed product variants on page: 111
• Typical unit per sale: 1 pce
• Available teeth counts include: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 45, 57, 76, 95
• Some large-tooth variants are produced on request / manufactured to customer requirements
