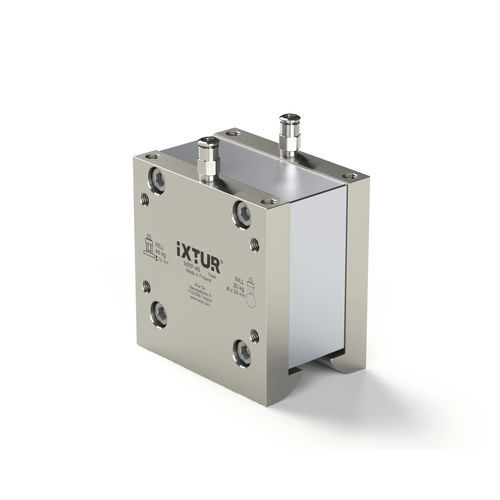

Neodymium permanent magnet MRP-46

square

Ixtur MRP-46 is a pneumatically controlled neodymium permanent magnet that has good size / gripping force ratio and low residual magnetism. The compact size combined with high gripping force make them versatile for various applications including: lifters, grippers, fixtures, production automation, robotic solutions, end-of-arm-tooling, etc. MRP-46 is capable of handling both round and flat parts, which is usually problematic for magnet grippers. Ixtur magnets do not change their magnetic state if compressed air is lost - e.g. in case of a damaged hose or compressor malfunction. This feature provides reliability and safety to material handling. Unlike vacuum lifting solutions, Ixtur MRP-46 handles also perforated material. The magnet consumes significantly less air than vacuum grippers, because compressed air is used only to switch the magnet on and off. MRP-46 can handle solid and perforated material, flat and round parts, made of steel or cast iron alike. Ixtur Pneumatic Magnet MRP-46: •Maintenance free •Good size / gripping force ratio •Gripping force: oFlat surface: 1324 N (WLL 45 kg with safety factor 3) Material thickness: 8 mm oRound surface: 883 N (WLL 30 kg with safety factor 3) Material diameter: ≥120 mm •Low residual magnetism, i.e. gripping force at the magnet's OFF state •Durable construction •Can be installed in any orientation •Handles also perforated material and round parts •Can be used with a large range of material thicknesses •Please see the brochure for detailed technical specifications
