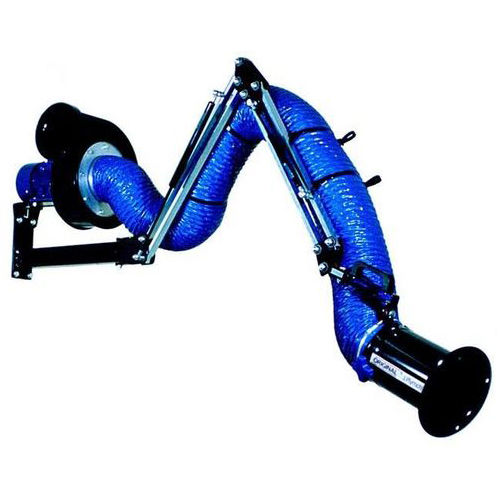

Fixed extraction arm Super-Max
flexiblefor welding fume extractorssuction

fixed extraction arm
fixed extraction arm
fixed extraction arm
Add to favorites
Compare this product


suction, for welding fume extractors
Other characteristics
with external support arm

1.5 m, 2 m, 3 m, 4 m
(4'11" , 6'06" , 9'10" , 13'01" )


100 mm, 125 mm, 160 mm, 200 mm
(3.94 in, 4.92 in, 6.3 in, 7.87 in)


Free Airflow in the Hose: Super-Max has the Support Arm outside -Nothing in the hose to disturb the airflow. -Better suction for a given fan size. -No dirty support arms and friction joints -Lower noise level. Perfectly balanced The external hydraulically suspended parallelogram arms is the secret. The hood is incredibly easy to move and 100 % stable in all positions. Super-Max is very robustly built which will give a long length of life even in the toughest environments. Super-Max is a High Quality Product It is equipped with a long strong steel hood to withstand sparks, chemicals and heat. The hood has a built in adjustable damper. The hose has a smooth inside and is very durable. All parts are laser cut for maximum precision. Patented Hood The hood can be angled more than 110° in all directions. The flat shape around the inlet of the hood gives a directional suction effect. You can catch pollution further away from the hood. The hood can be angled more than 110° in all directions. Pat. Nr 0461574.
