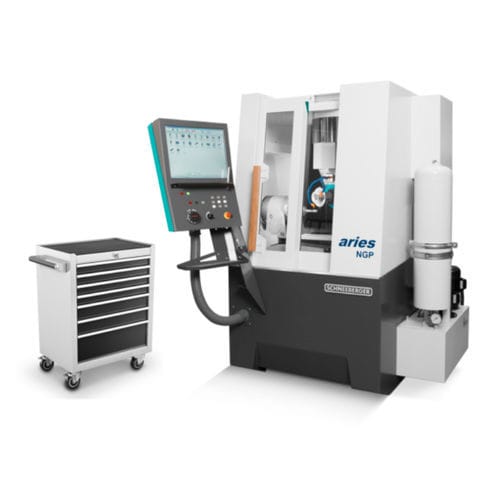

Cutting tool grinding machine aries NGP

universalCNC5-axis

CNC tool grinding machine for maximum flexibility thanks to innovative 5-axis concept. Ideally suited for the re-sharpening of universal cutting tools, as well as the production of small series. Perfect for the tool room: Generous working area, perfect SCHNEEBERGER machine quality and great stability, with the footprint of a tool cabinet! Ultra-compact construction, 99 cm wide with a work envelope for tools up to a diameter of 250mm and length of 250mm. Accessories for individual expansion of the application spectrum and for increased productivity. Numerous accessories to expand the application range and productivity of the machine. Measurement systems in all axes Manual tailstock Manual steady rest Collet system, clamping mandrel, insert tool holder Coolant filtration system Exhaust air filter CO2 extinguishing system Axes: Z: 260mm (10.2”), vertical, linear bearings, ball screw, resolution 50nm A: HSK 80, work holder, resolution 0.0001° C: 320°, rotation of the grinding head, resolution 0.0001° Control: FANUC 31i-B5, optional FANUC 0iF, 5 controlled axes 19” TFT color monitor, touch-screen, USB 3.0 Loader: Integrated tool loader, tool pallet 200 x 200 mm (7.9” x 7.9”) Grinding head: Double ended grinding spindle, direct drive, HSK 50, liquid-cooled Weight: 1’700 kg (3‘747 lb)
