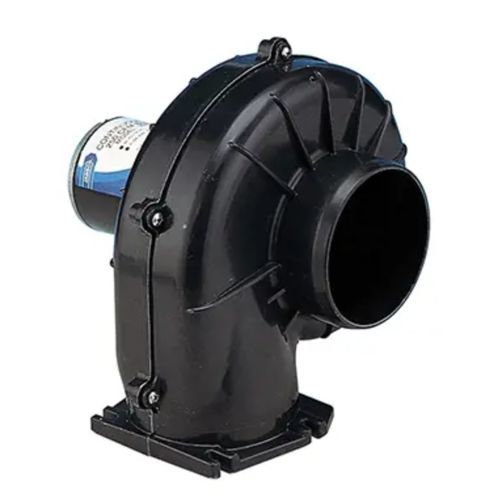

Air blower 3 series

rotarysingle-stagefor ventilation

Product Features Tough corrosion-resistant materials throughout 3” (75mm) and 4” (100mm) models available Heavy duty models for larger vessels 12V & 24V DC Efficient high-volume air flow - Up to 250 cu.ft/min air flow (7 cu.m/min) Slip-on inlet ducting connection Mount to any surface Quiet running Jabsco Ventilation Blowers are designed to remove fumes from the engine compartments of gasoline powered boats prior to start-up, and therefore conform to: ISO 8846 MARINE and USCG Regulations for ignition protection N.M.M.A. type accepted ISO 11105 MARINE EN60945 and CE/UKCA (EU models) Jabsco Ventilation Blowers can also be used for air intake or extraction in galleys, bilges, accommodation, and head compartments. Blowers should not be installed close to sources of direct heat exceeding 180°F (55°C). Jabsco Ventilation Blowers are available in flangemount and flexmount configurations in either standard or heavy-duty models. What is a flangemount blower? Flangemount blowers are of a radial design, which gives the highest output in more complex installations with longer ducting lengths and/or multiple bends in the ducting. They are generally mounted directly onto a flat bulkhead using a mounting collar to connect to the discharge ducting. This allows for a neat installation on an engine room bulkhead. Jabsco Standard Flangemount Ventilation Blowers Available in a range of high-volume air intake or extraction blowers for engine rooms, fuel compartment, galleys or heads. Jabsco standard flangemount Ventilation Blowers feature a low current draw with dimensionally stable, quiet-running Delrin rotors.
