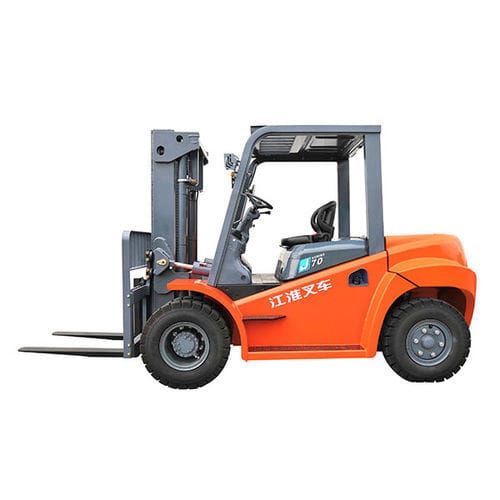

Electro-hydraulic forklift truck CPCD seriesdieselride-onoutdoor
Add to favorites
Compare this product
Characteristics
- Motor type
- electro-hydraulic, diesel
- Operator
- ride-on
- Applications
- outdoor
- Other characteristics
- 4-wheel, counterweight, heavy-duty
- Carrying capacity
Max.: 12 t
(13.2 us ton)Min.: 5 t
(5.5 us ton)- Lifting height
3,000 mm
(118.11 in)- Overall width
2,045 mm, 2,268 mm, 2,350 mm
(80.5 in, 89.3 in, 92.5 in)- Overall length
3,630 mm, 3,640 mm, 4,252 mm, 4,528 mm
(142.9 in, 143.3 in, 167.4 in, 178.3 in)- Load center distance
600 mm
(23.6 in)- Weight without load
Max.: 16,000 kg
(35,274 lb)Min.: 8,760 kg
(19,312.5 lb)- Height of mast when lowered
2,510 mm, 2,845 mm, 3,230 mm
(98.8 in, 112 in, 127.2 in)- Free lift
85 mm, 150 mm, 172 mm, 182 mm
(3.3 in, 5.9 in, 6.8 in, 7.2 in)- Overall height with mast raised
4,280 mm, 4,415 mm, 4,655 mm
(168.5 in, 173.8 in, 183.3 in)- Height to top of overhead guard
2,500 mm, 2,600 mm, 2,650 mm
(98.4 in, 102.4 in, 104.3 in)- Turning circle radius
3,580 mm, 4,280 mm, 4,350 mm
(140.9 in, 168.5 in, 171.3 in)- Travel speed
Max.: 28 km/h
(17.4 mph)Min.: 20 km/h
(12.4 mph)- Lifting speed
Max.: 520 mm/s
Min.: 286 mm/s
- Lowering speed
Max.: 460 mm/s
Min.: 320 mm/s
- Rated drawbar pull
53 kN, 60 kN
- Gradeability
20 %, 22 %, 28 %, 30 %
- Maximum operating pressure
19.5 MPa
Description
Electro-hydraulic gearbox features easy operation. The CPCD120 is integrated with multi-plate clutch for quick speed control,enabling stable operation.
Reinforced drive axle enables it to be more suitable for use under harsh working conditions.
A protective sleeve is added to the steering cylinder to reduce the external force damage of the cylinder.
Low-loss multi way valve application ensures lifting system efficiency is increased by 10%, oil temperature decreased by 12 ℃.
The integral overhead guard can stand high pressure, which is rainproof and sun-proof, making it suitable for outdoor operation.
180L large-capacity fuel tank provides longer working time for a single refueling.
With counterbalance mesh cover, the engine and control system can be well-protected for safe operation.
Ratchet-type brake system requires less effort from the operator to set.
Intelligent instrument realizes live preview of vehicle operation information in a real-time manner.
Three-layer parallel composite radiator can raise the heat dissipation effect by 15%.
Combustion system is covered by gasket seal to prevent leakage, making clean and safe operation.
12-ton heavy-duty structural wide-view mast
