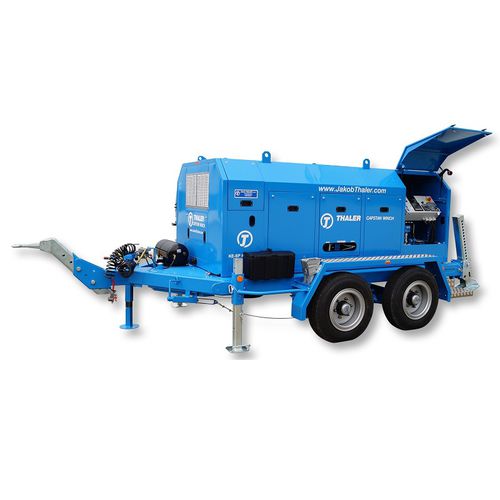

Diesel engine capstan winch KE-SP 80 series

for cablespullingpipe renewal

The hydraulic pump is equipped with a special adjuster. By this it is guaranteed that the adjusted speed is always kept constant. The pulling speed may be regulated by a hand wheel continuously from 0 to max. Furthermore the pulling force is adjustable by a hand wheel as well from 0 to max. When the pre-selected pulling force is reached the hydraulic pump is regulating to “Zero-supply” and the winch operation is stopping whereas the pulling force is staying constant (pre-tension-system). Amongst others Thaler Pipe Renewal Winches are used for Pipe Cracking, Pipe Cleaning, Pipe Relining and in combi- nation with a Swagelining unit. They are constructed under strict compliance with the machine guidelines of the European Community and with their chassis approved by TÜV (Technical Surveyance Authorities) they are admitted to the public traffic. Standard equipment • Double capstan system, both capstan heads are driven • No chains between hydraulic engine and capstan system • Hydrostatic drive • Diesel engine • 500 m usable rope length, smaller or bigger rope lengths upon request • Automatic rope guidance to the drum • Pre-tension-system • Pulling force control by electronic measuring system with USB port and stick - SYSTEM TM 3000 • Tandem axle chassis with overrunning brake, height adjustable drawbar • Metal hood • Loading equipment with two central crane hooks • Painting: RAL 5015 (blue) Optional Equipment • Other measuring systems like the TM 3001 • Petrol or electric engines • Printer for the electronic measuring system TM 3000/1 (additional to USB port) • Remote control by cable or radio transmission • Winch on basic frame for mounting on trucks
