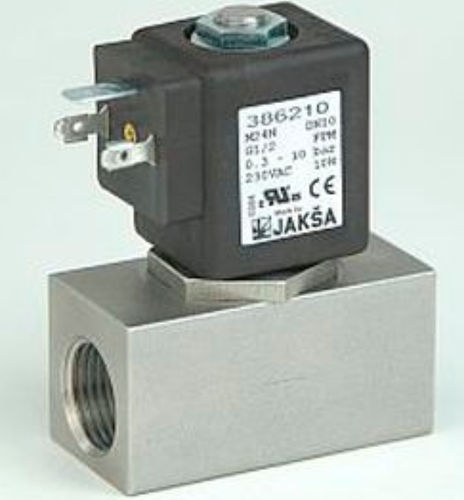

Diaphragm solenoid valve M24N series
pilot-operated2-wayNC

diaphragm solenoid valve
diaphragm solenoid valve
diaphragm solenoid valve
Add to favorites
Compare this product

Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
water, air
Body
stainless steel, IP65
Other characteristics
diaphragm
Temperature

Min.: -10 °C (14 °F)

Max.: 100 °C (212 °F)

Pressure

Min.: 0.3 bar (4.4 psi)

Max.: 12 bar (174 psi)

DN

0.5 in

Voltage

Min.: 24 V

Max.: 230 V

Description

Internal parts: stainless steel Seals: NBR, EPDM, FPM Fluid temperature: -10°C to +85°C (NBR); +100°C (EPDM, FPM) Ambient temperature: max +55°C Viscosity: max 21 mm2/s Response times: opening 0.05 - 1 s; closing 0.5 - 4 s Voltage: 230, 115, 48, 24 V AC; 24, 12 V DC Duty cycle: continuous (ED100%) Cycling rate: 10 - 100 cycles/min Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400) Long term use in humid environment requires the use of sealing sets.
