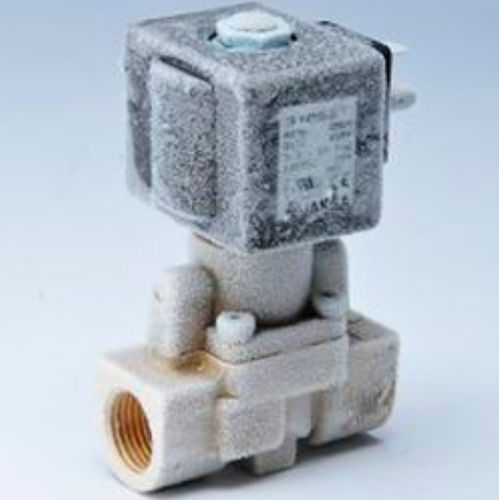

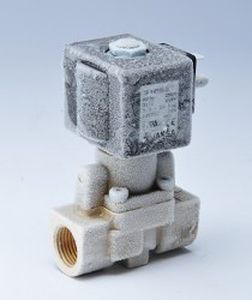

Pilot-operated solenoid valve B25
2-wayNCfor liquified gas

pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for liquified gas
Body
IP65, brass
Process connection
G 1/2, G 3/4
Other characteristics
ISO, for high flow rates, cryogenic, piston
DN

0.5 in, 0.75 in

Voltage

24 V, 230 V

Temperature

Min.: -196 °C
(-321 °F)

Max.: 90 °C
(194 °F)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Description

Internal parts: stainless steel Seals: PTFE Viscosity: max 21 mm2/s Response time: 8 - 40 ms (closing) Duty cycle: continuous (ED100%) Cycling rate: 10 to 100 cpm Electrical protection: IP65 (with plug to ISO 4400) Follow special instructions for use.
