Sliding gate EI30
high-speedindustrialfor fire protection

sliding gate
sliding gate
sliding gate
sliding gate
sliding gate
sliding gate
sliding gate
Add to favorites
Compare this product


Operating mode
Product applications
industrial, for fire protection
steel, aluminium

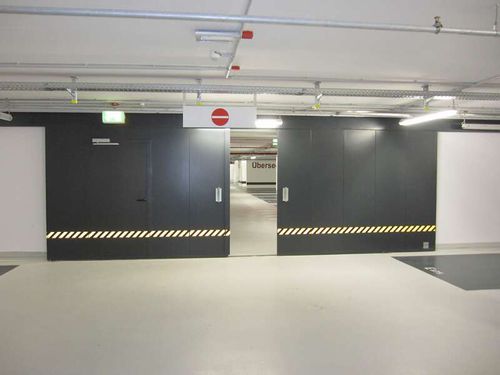

SPEED SLIDING GATE ORPHEUS DESCRIPTION Whether it is a restaurant kitchen or a large logistics centre, Jansen's high-speed sliding doors enable you to move between your premises quickly, flexibly and without contact. We combine the speed of the industrial high-speed sliding gate with the properties of a fire protection sliding gate. The individual sections are connected at the installation point by a special connecting system to form a stable door leaf. The door leaf thickness is 62 mm. The surface is completely flat and level, made of galvanised sheet steel. The running gear in solid steel construction is equipped with large, ball-bearing mounted running and adjustable counter support rollers made of polyamide. The door leaf suspension brackets are height adjustable. The guiding rail is made of a solid extruded aluminium profile and has a self-cleaning design of the running surfaces. The running rail is lined with a steel tube to achieve the correct position to the gate leaf. The floor guide is located on the side of the clear width. A shell handle on the inside and outside of the gate is used as a fitting. The inlet profile is made of galvanised sheet steel. Fastening through the profile directly to the wall. On the floor additional fixing as an anti-twist device. Firmly connected at the top with horizontal guide rail. Guiding of the incoming door leaf by means of an entry shoe in the lower area.
