Roll-up door ACOUSTICLINE 51-54 DB
steelacoustic

roll-up door
roll-up door
roll-up door
roll-up door
roll-up door
Add to favorites
Compare this product


Characteristics

Type
roll-up
Material
steel
Other characteristics
acoustic
Height

4,000 mm (157 in)

Description

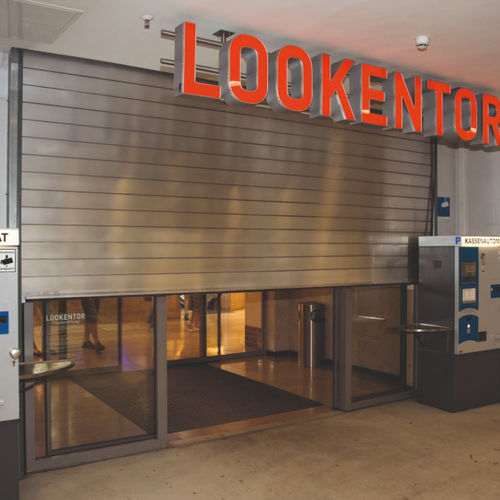

Jansen's soundproofing roller door is certified according to DIN EN ISO 140-3 by the MPA Braunschweig. To achieve higher soundproofing values two roller doors, one at each side of the fall, are installed. The distance between is at least 260 mm. This double-door-solution reaches a soundproofing value of Rw,p = 51 dB. To achieve soundproofing values of Rw,p = 54 dB the door leafs are additionally covered with an acoustic hood. Both roller door solutions are available up to a height of 4.000 mm. The door leafs consist of 114 mm high aluminium hollow section profiles with soundproofed filling. The separate slats are joined to a shell via a turnable connection system. The thickness of the elements is 26 mm. The guide rails consist of zinc-coated sheet steel in a screwed construction. Plug-on drive with built-in retainer or sprocket drive with separate retainer. In case of a power failure the door can be operated via an emergency crank. Opening and closing speed: approx. 0.11 m/s. Maintenance-free drive unit. Control voltage 24 V, push button “Open-Stop-Close” on switch box, 16-A-CEE-plug for connection to on site socket on operating level. Surface coating: Colouring according to RAL, DB, NCS Control elements: Automatic control, impulse transmitter, radio control, key-operated switch, push button, pull switch, IR-/radar motion sensor, induction loop
