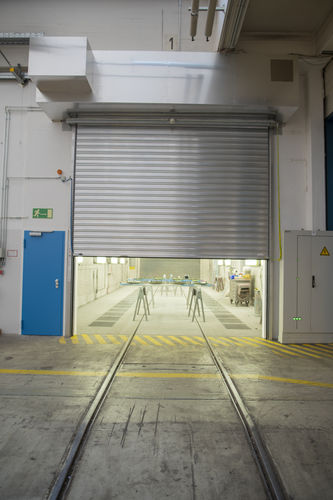

ATEX door ATEX 131
roll-upstainless steelsteel

ATEX door
ATEX door
ATEX door
ATEX door
ATEX door
Add to favorites
Compare this product


Characteristics

Type
roll-up
Material
stainless steel, steel
Other characteristics
insulated, acoustic, ATEX

Description

Control voltage 24 V, push button “Open-Stop-Close” on switch box, connection to on site socket on operating level. Placement of drive and control, depending on requirements, inside or outside the ATEX-zone. Jansen can deliver doors according to the explosion prevention requirement 2014/34/EU (ATEX-directive) Gases - Zone 1 An area in which an explosive mixture is likely to occur in normal operation - Zone 2 An area in which an explosive mixture is not likely to occur in normal operation and if it occurs it will exist only for a short time Dusts - Zone 21 An area in which an explosive mixture is likely to occur in normal operation. - Zone 22 An area in which an explosive mixture is not likely to occur in normal operation and if it occurs it will exist only for a short time. Zone 1 is a place in which an explosive atmosphere consisting of a mixture with air of flammable substances in the form of gas, vapour or mist is likely to occur in normal operation occasionally. - The door leaf consists of double-walled, insulated steel slats, which are joined to a shell via a turnable conncetion system. Execution as stainless steel roller door is possible. The slats are individually produced, according to requirements of door and installation situation. If additional soundproofing requirements are needed, the roller door will be executed with a soundproofed filling. To achieve high soundproofing values, the door leaf is additionally covered with an acoustic hood.
